Запчасти Case 590SN (21.135.AQ[01]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, CONTROL VALVE, 4WD (21) - TRANSMISSION

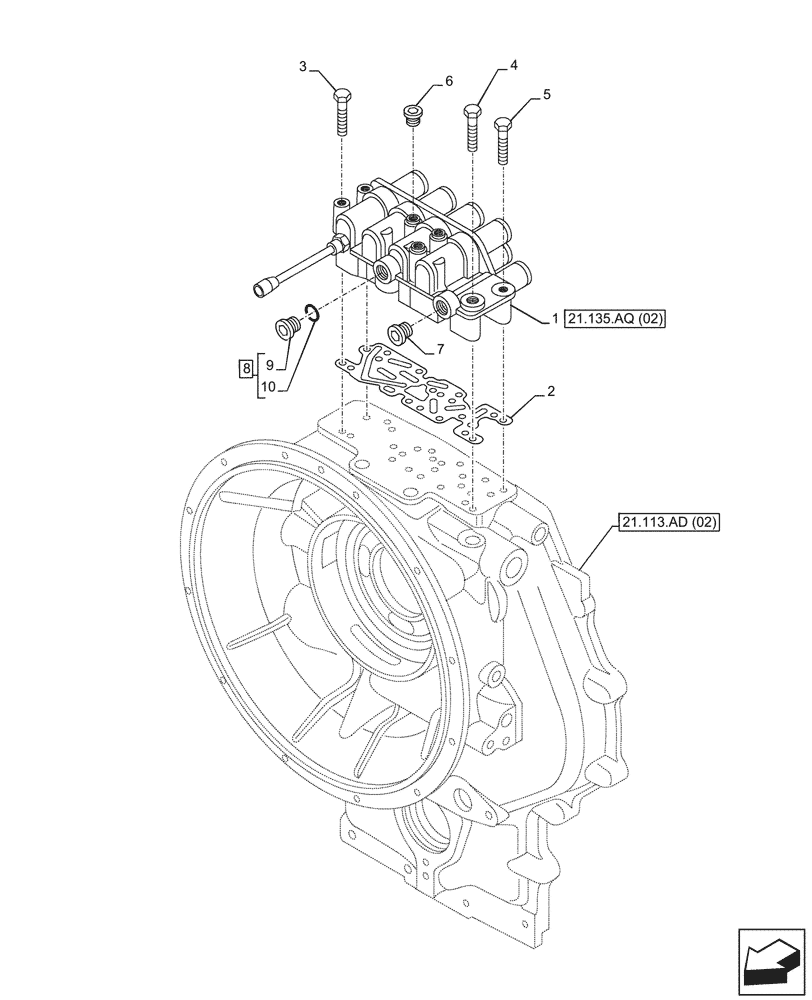

Схема запчастей Case 590SN - (21.135.AQ[01]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, CONTROL VALVE, 4WD (21) - TRANSMISSION
21.135.aq (02)
3
1
10
6
4
2
8
5
9
7
21.113.ad (02)

Артикул

Название

Примечание

Количество

1

87705566

CONTROL VALVE

Powershift Transmission, ASSY

1шт.

2

87705720

GASKET

Hydraulic Control Valve

1шт.

3

87707942

BOLT,Hex, M8 x 95mm, Cl. 8.8

1шт.

4

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

1шт.

5

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

6

87705714

PLUG

1шт.

7

87705729

PLUG

1шт.

8

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 10
