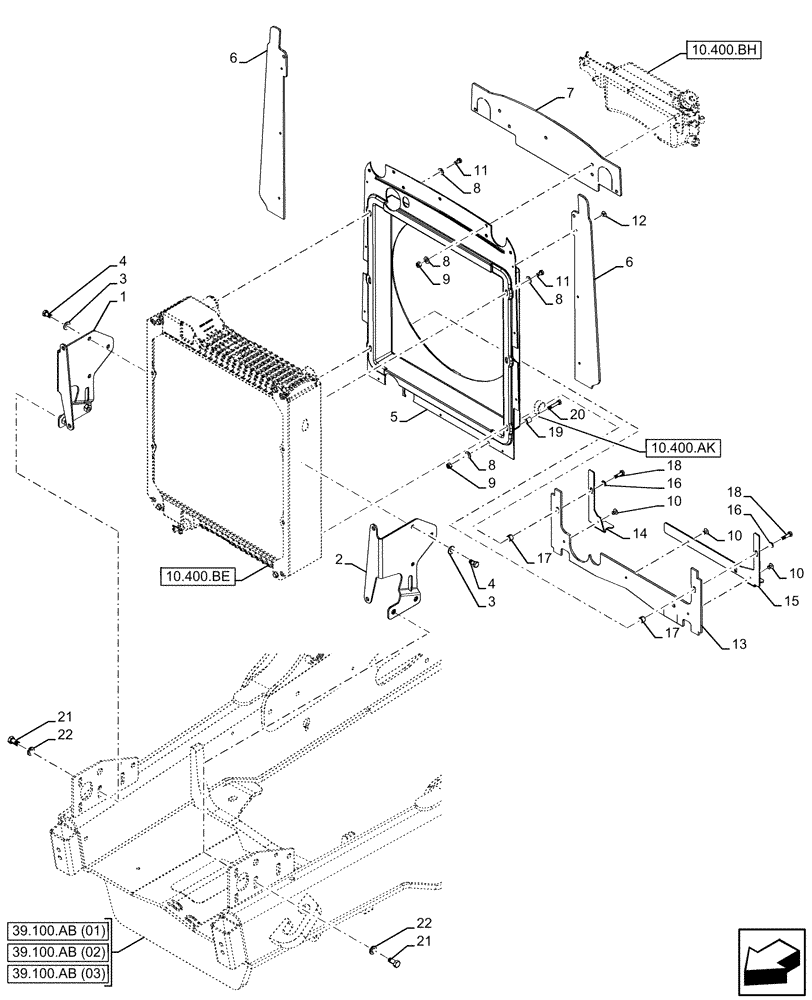

Запчасти Case 590SN (10.400.BF) - VAR - 423000, 423001, 442082, 747853, 747854, 747855 - RADIATOR, SUPPORT (10) - ENGINE

1

87602286

BRACKET

Radiator, Support, RH

1шт.

2

87602287

BRACKET

Radiator, Support, LH

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

5

87559003

SHROUD

Fan

1шт.

6

87628308

INSULATOR

Radiator, Side

2шт.

7

87628324

SEAL,614mm L

Radiator, Top

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

10

87301356

RIVET,Pop, 3/16" x .700"

3шт.

11

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

12

87301355

RIVET,Pop, 3/16" x .575"

6шт.

13

87434978

INSULATOR

Radiator, Lower

1шт.

14

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

Radiator, Lower, RH

1шт.

15

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

Radiator, Lower, LH

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

2шт.

18

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

8mmx16mm

1шт.

20

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

21

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

22

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
