(90.110.AV[05]) - VAR - 423000, 442082 - OPERATORS COMPARTMENT, PANEL

Запчасти Case 590SN (90.110.AV[05]) - VAR - 423000, 442082 - OPERATORS COMPARTMENT, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

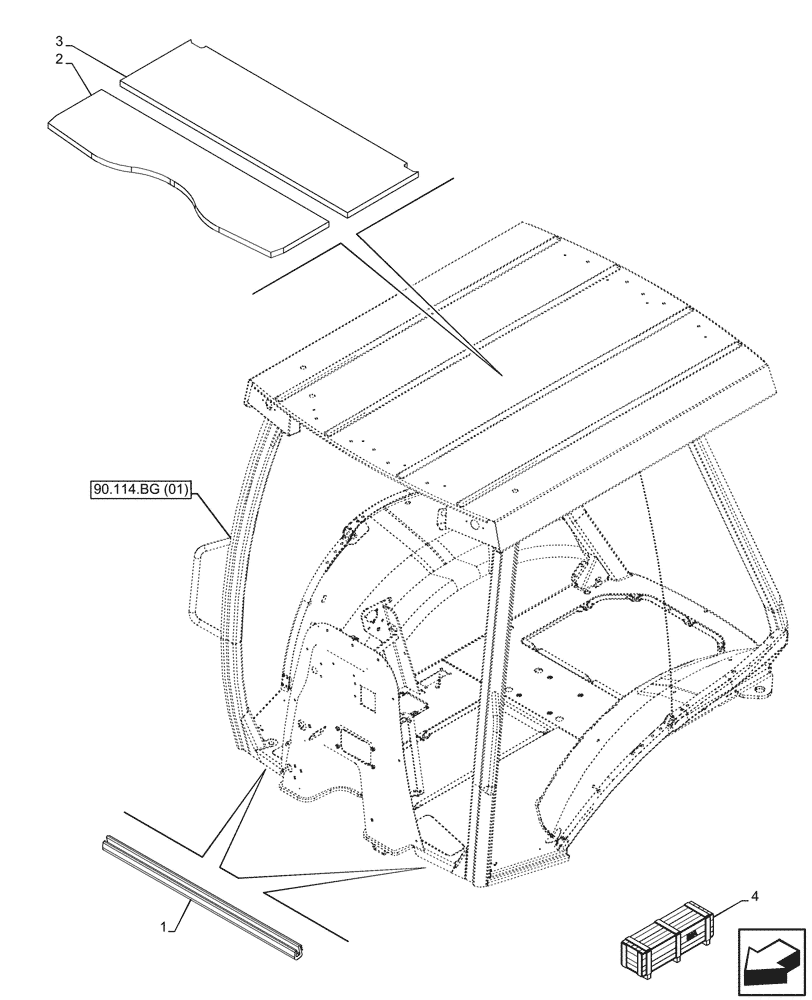

Схема запчастей Case 590SN - (90.110.AV[05]) - VAR - 423000, 442082 - OPERATORS COMPARTMENT, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.bg (01)
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395793A1

PROTECTION STRIP

2шт.

2

431583A1

PANEL

Roof Foam - Front

1шт.

3

431584A1

PANEL

Roof Foam - Rear

1шт.

4

84275492

CONSTRUCTION DIA

Canopy ASM Deluxe Wide, Incl 1 - 3

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
