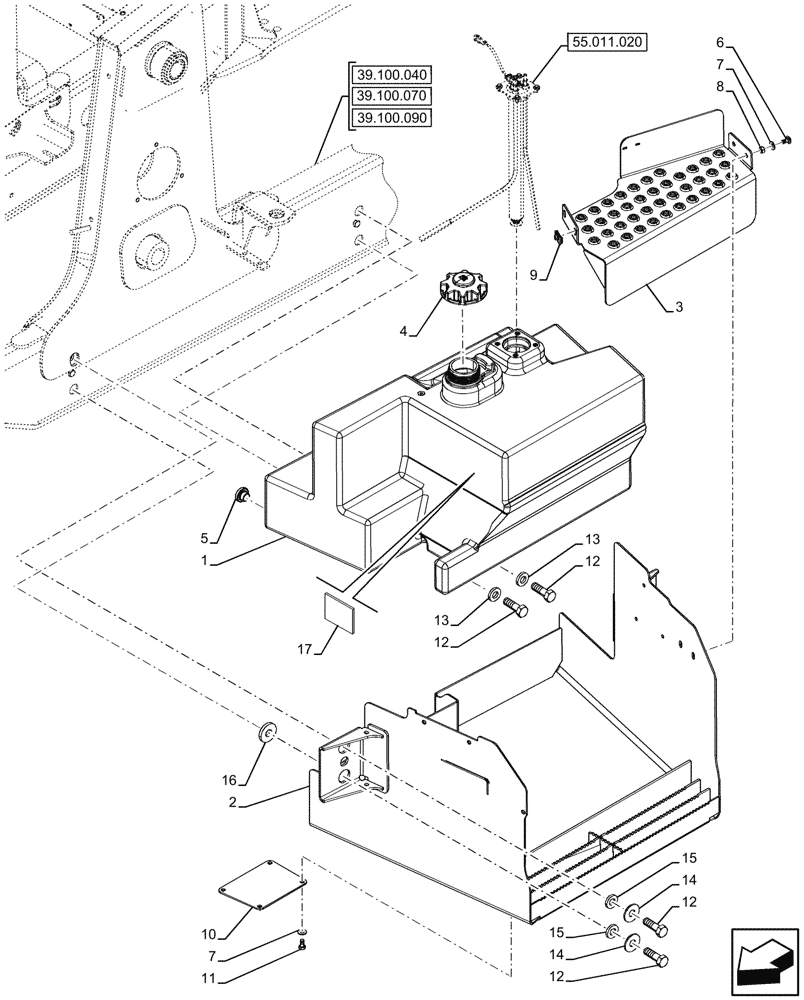

Запчасти Case 590SN (10.216.030) - FUEL TANK (10) - ENGINE

1

47416688

FUEL TANK

42 U.S. Gallons / 159 Liters

1шт.

2

47955813

SUPPORT

Grey

1шт.

3

47945986

PLATE

Grey

1шт.

4

84293447

CAP,128.7mm D

Fuel Tank

1шт.

5

84485414

DRAIN PLUG,M24 x 1.5

1шт.

6

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

7

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

86625071

SPRING NUT,M10 x 1.5

2шт.

10

47945989

PLATE

Grey

1шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

12

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

13

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

14

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

15

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

16

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

17

47888931

PAD

2шт.
