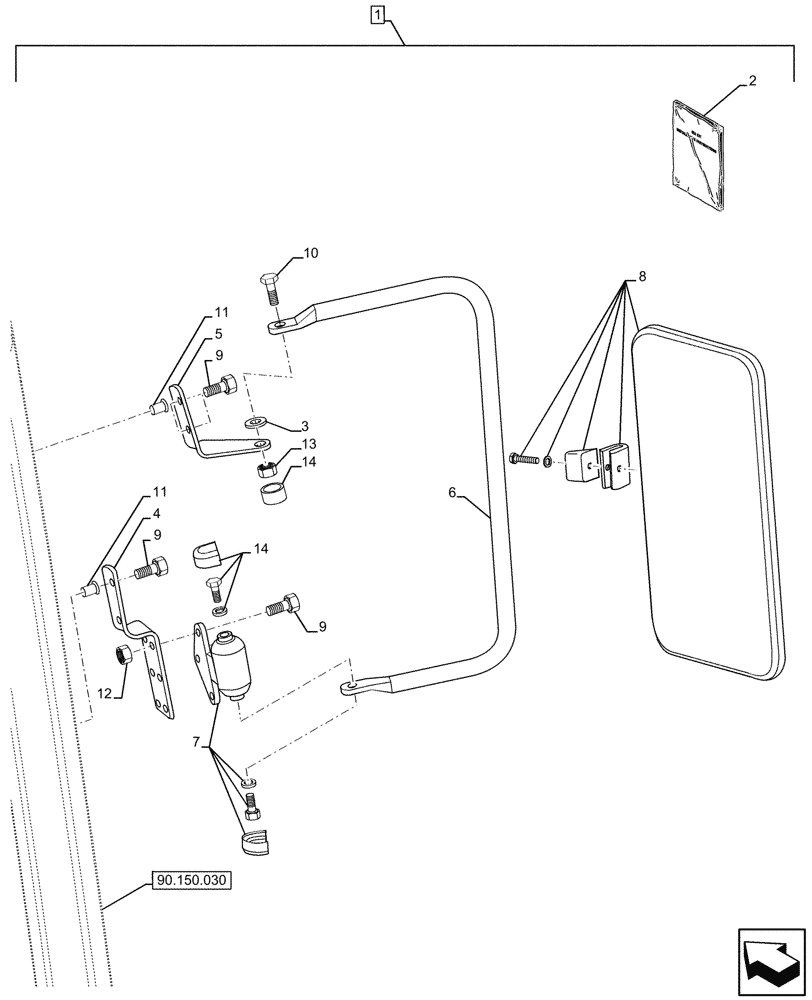

Запчасти Case 590SN (88.100.90[01]) - DIA KIT, REAR VIEW OUTSIDE MIRROR (88) - ACCESSORIES

1

397974A1

CONSTRUCTION DIA

Outside Mirror, Incl 2 - 14

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84375796

INSTRUCTION

1шт.

3

A167037

WASHER

2шт.

4

402936A1

BRACKET

2шт.

5

402934A1

BRACKET

LH, Upper

1шт.

5

402933A1

BRACKET

RH, Upper

1шт.

6

402935A1

SUPPORT TUBE

2шт.

7

D142144

HINGE

2шт.

8

R54682

MIRROR

Convex

2шт.

9

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

14шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

11

255447A1

THREADED INSERT

10шт.

12

86625061

NUT,1/4"-20, GB

6шт.

13

280736

NUT,5/16"-18, GC

2шт.

14

255605A1

TOOL KIT

1шт.
