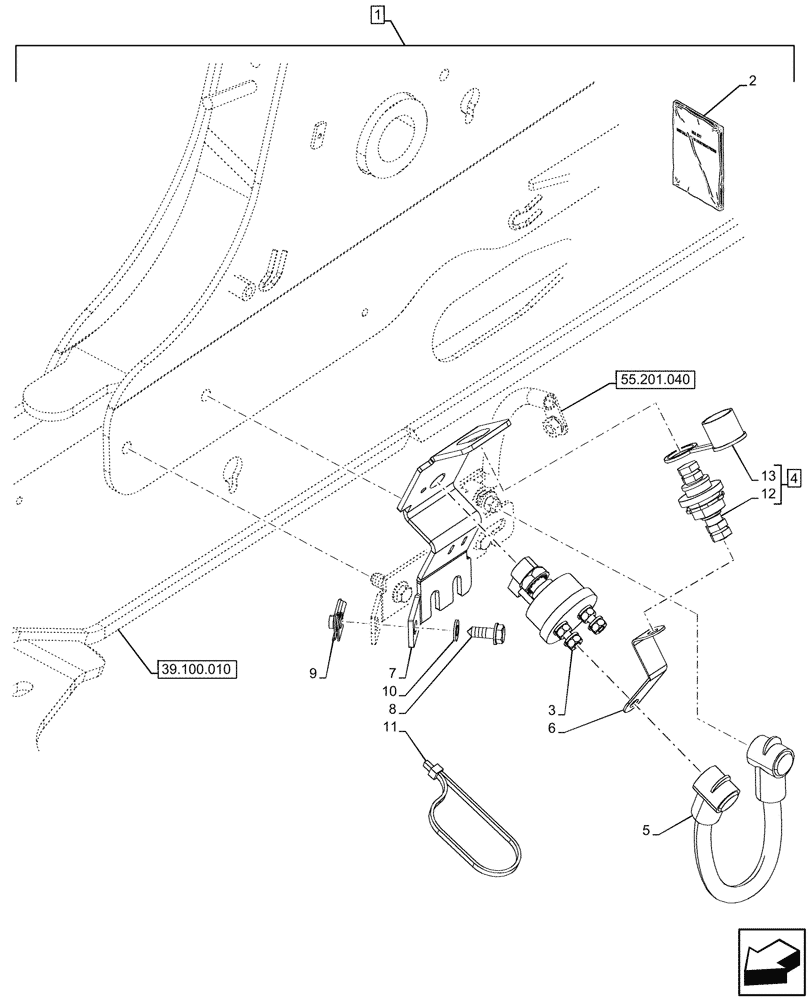

Запчасти Case 590SN (88.100.55[01]) - DIA KIT, REMOTE JUMP START (88) - ACCESSORIES

1

47419445

CONSTRUCTION DIA

Remote Jump Start, Incl 2 - 13

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47419447

INSTRUCTION

1шт.

3

87409316

SWITCH

Rotary, Master Disconnect

1шт.

4

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

ASSY, Incl 12, 13

1шт.

5

84598674

POS BATTERY CABLE

1шт.

6

84543508

BAR

Battery Disconnect

1шт.

7

84540360

BRACKET

Battery Disconnect

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

87417383

THREADED INSERT,M8 x 1.25

2шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

12

48016448

BOOT

1шт.

13

NSS

NOT SOLD SEPARAT

Terminal Connector, Incl in 4

1шт.
