(88.100.50[02]) - DIA KIT, CAB, AIR CONDITIONER HPCR

Запчасти Case 590SN (88.100.50[02]) - DIA KIT, CAB, AIR CONDITIONER HPCR (88) - ACCESSORIES

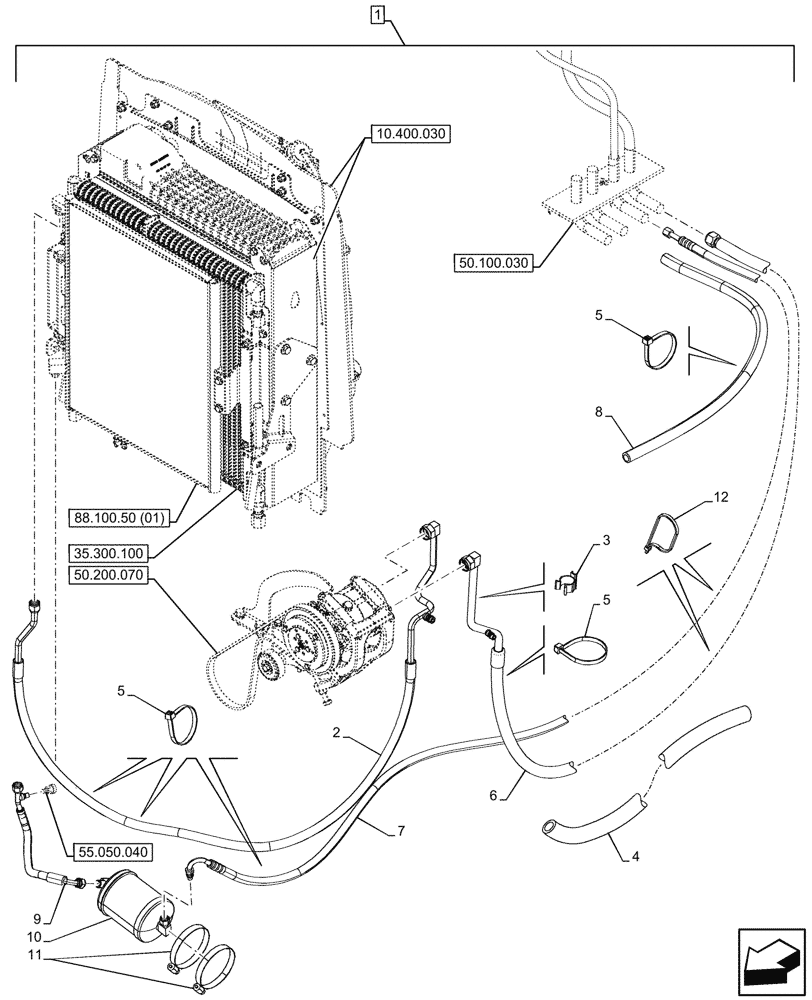

Схема запчастей Case 590SN - (88.100.50[02]) - DIA KIT, CAB, AIR CONDITIONER HPCR (88) - ACCESSORIES
55.050.040
12
11
1
10
5
7
2
3
4
5
5
9
8
6
88.100.50 (01)
50.200.070
50.100.030
35.300.100
10.400.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 2 - 12

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84515234

A/C HOSE,1830mm L

Compressor to Condenser

1шт.

3

84292413

MOUNTING CLIP,15mm ID

1шт.

4

47413529

GUARD

Hose

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

6

84490123

A/C HOSE,2479mm L

Cab to Compressor

1шт.

7

84418866

HOSE,8mm ID x 2787mm L

Dryer to Cab

1шт.

8

84522912

HOSE PROTECTION,19.1mm ID x 2670mm L

Polypropilene

1шт.

9

87630218

A/C HOSE,340mm L

Condenser to Dryer

1шт.

10

86984155

RECEIVER-DRYER

1шт.

11

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

6шт.
