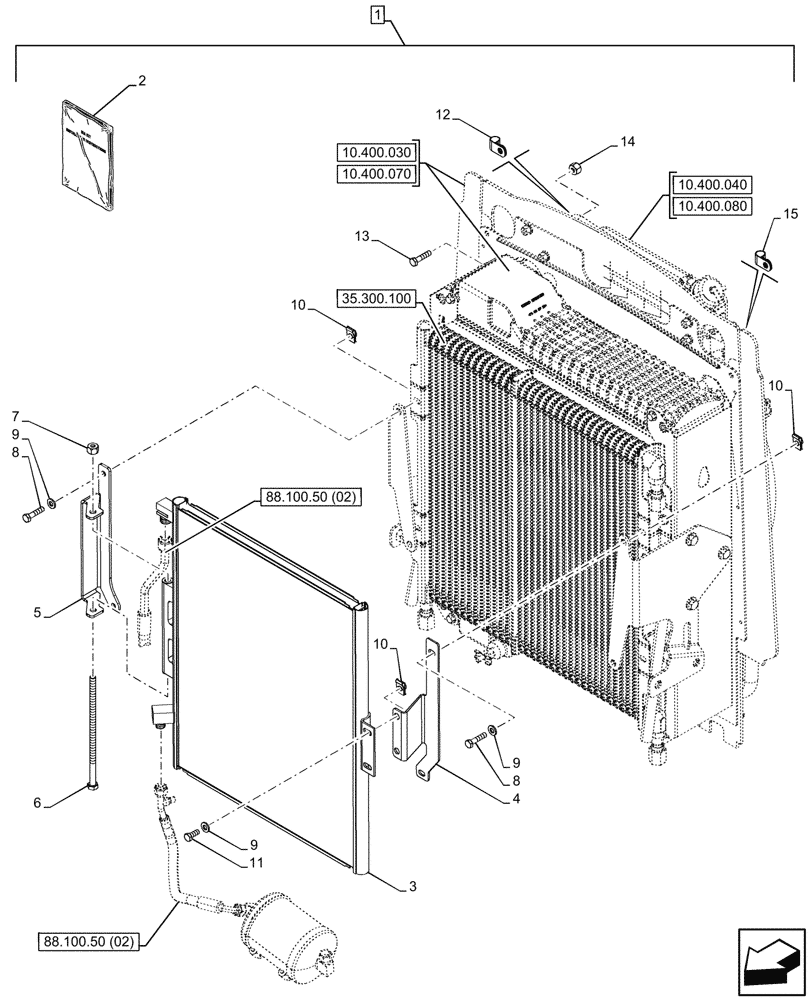

Запчасти Case 590SN (88.100.50[01]) - DIA KIT, CAB, AIR CONDITIONER HPCR (88) - ACCESSORIES

1

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 2 - 15

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47699073

INSTRUCTION

1шт.

3

87546291

CONDENSER

Air Conditioning

1шт.

4

87606979

BRACKET

LH, Condenser Support

1шт.

5

87606977

BRACKET, PIVOT

Condenser Pivot

1шт.

6

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

7

412141

NUT,M10 x 1.5, Cl 8

1шт.

8

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

10

833-40408

NUT,M8, U

6шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

12

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

13

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

15

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.
