(88.100.35[27]) - DIA KIT, DUAL AUXILIARY, STANDARD DIPPER, PILOT CONTROL

Запчасти Case 590SN (88.100.35[27]) - DIA KIT, DUAL AUXILIARY, STANDARD DIPPER, PILOT CONTROL (88) - ACCESSORIES

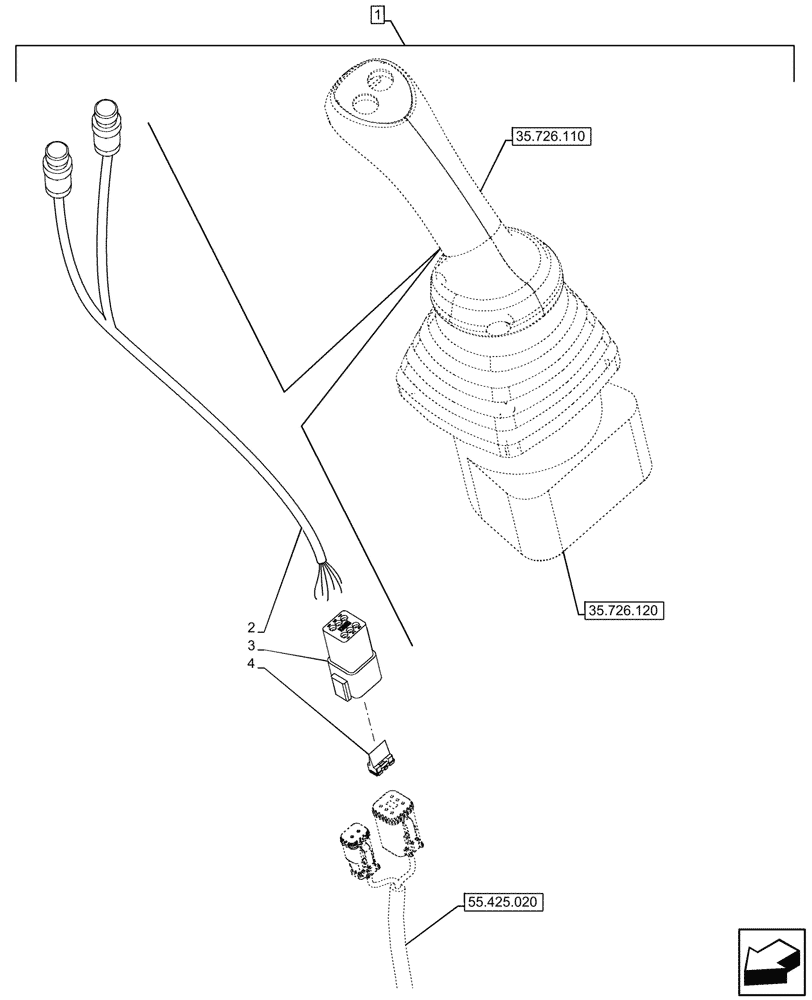

Схема запчастей Case 590SN - (88.100.35[27]) - DIA KIT, DUAL AUXILIARY, STANDARD DIPPER, PILOT CONTROL (88) - ACCESSORIES
35.726.120
1
4
3
2
35.726.110
55.425.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84412228

SERVICE KIT

Dual Auxiliary, Standard Dipper, Pilot Control, Incl 2 - 4

1шт.

2

84134639

SWITCH

Proportional Push Button

2шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

Male, 6 Pin

1шт.

4

225353C1

WEDGE,Lock, Black

Lock, Black

1шт.

Выбрано товаров: 4
