(88.100.35[22]) - DIA KIT, DUAL AUXILIARY, EXTENDABLE DIPPER, PILOT CONTROL

Запчасти Case 590SN (88.100.35[22]) - DIA KIT, DUAL AUXILIARY, EXTENDABLE DIPPER, PILOT CONTROL (88) - ACCESSORIES

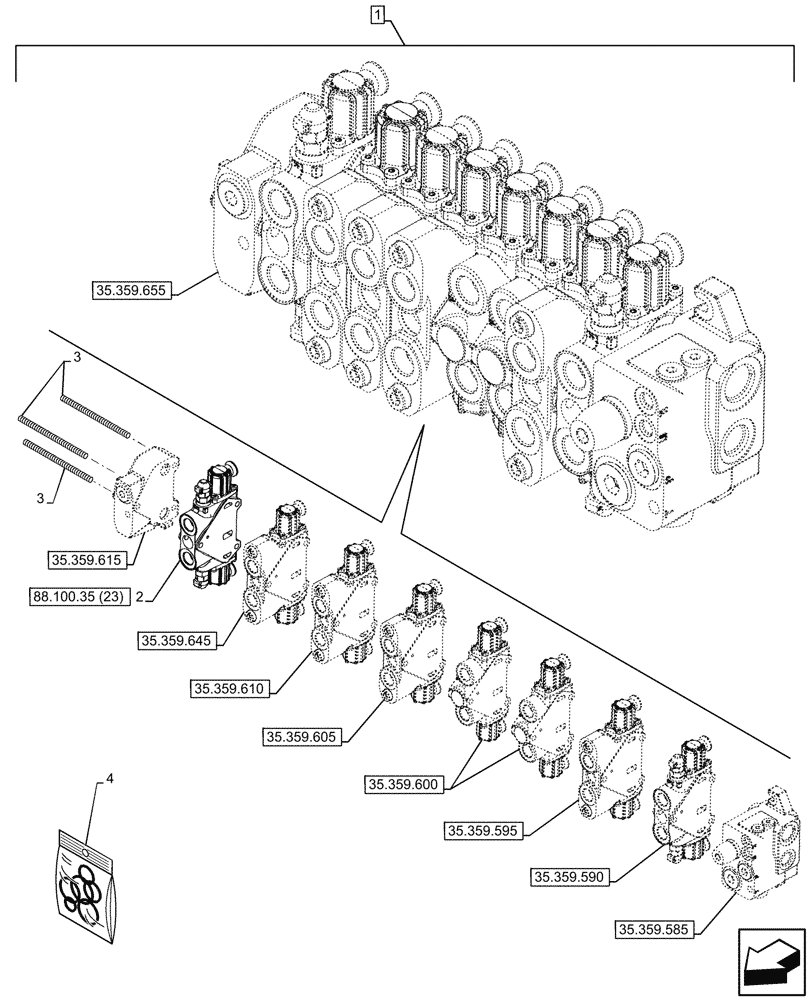

Схема запчастей Case 590SN - (88.100.35[22]) - DIA KIT, DUAL AUXILIARY, EXTENDABLE DIPPER, PILOT CONTROL (88) - ACCESSORIES
35.359.595
1
3
4
2
3
35.359.655
35.359.590
35.359.585
35.359.615
35.359.600
35.359.645
88.100.35 (23)
35.359.610
35.359.605
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84412227

SERVICE KIT

Dual Auxiliary, Extendable Dipper, Pilot Control, Incl 2 - 4

1шт.

2

84278691

HYD VALVE SECTION

ASSY, Bi-Dir, Pilot Control

1шт.

3

87447477

SET OF PARTS

for 8 Spool

1шт.

4

85824281

SEAL KIT,Control Valve Section, Complete

Control Valve Section

1шт.

Выбрано товаров: 4
