(88.100.35[17]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION

Запчасти Case 590SN (88.100.35[17]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

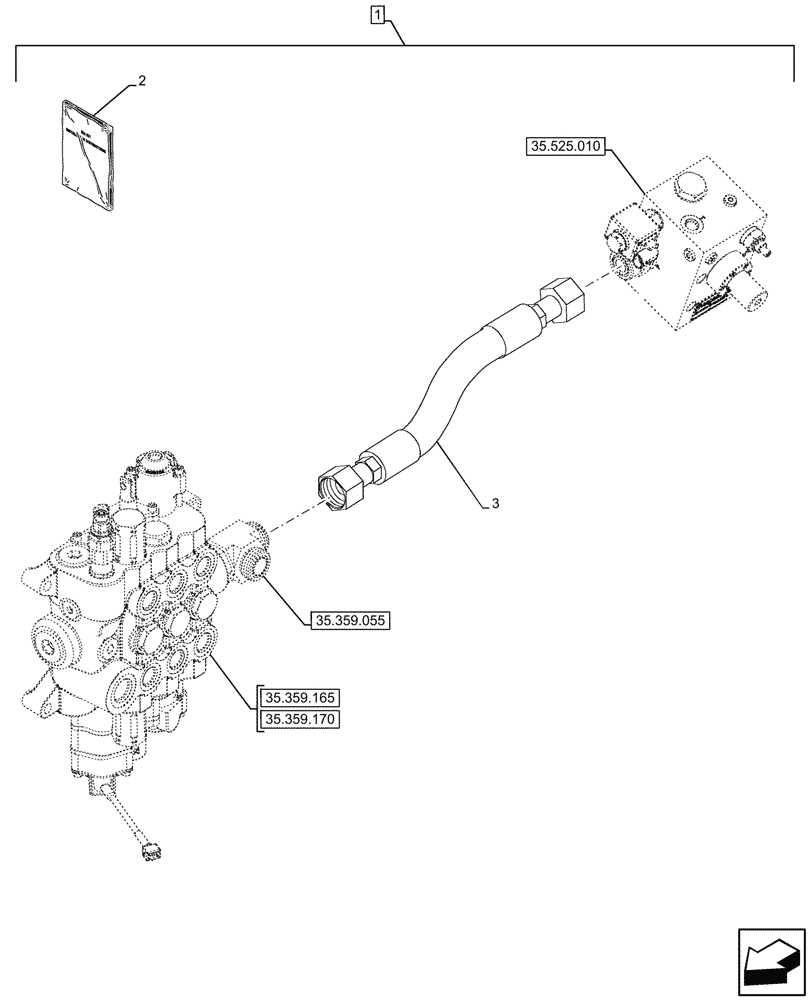

Схема запчастей Case 590SN - (88.100.35[17]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
35.359.055
3
1
2
35.359.165
35.359.170
35.525.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Powershift Transmission, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47961111

INSTRUCTION

1шт.

3

84256650

HOSE ASSY.,25mm ID x 954mm L

Loader Valve to Hammer Valve

1шт.
