(88.100.35[16]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHUTTLE TRANSMISSION

Запчасти Case 590SN (88.100.35[16]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHUTTLE TRANSMISSION (88) - ACCESSORIES

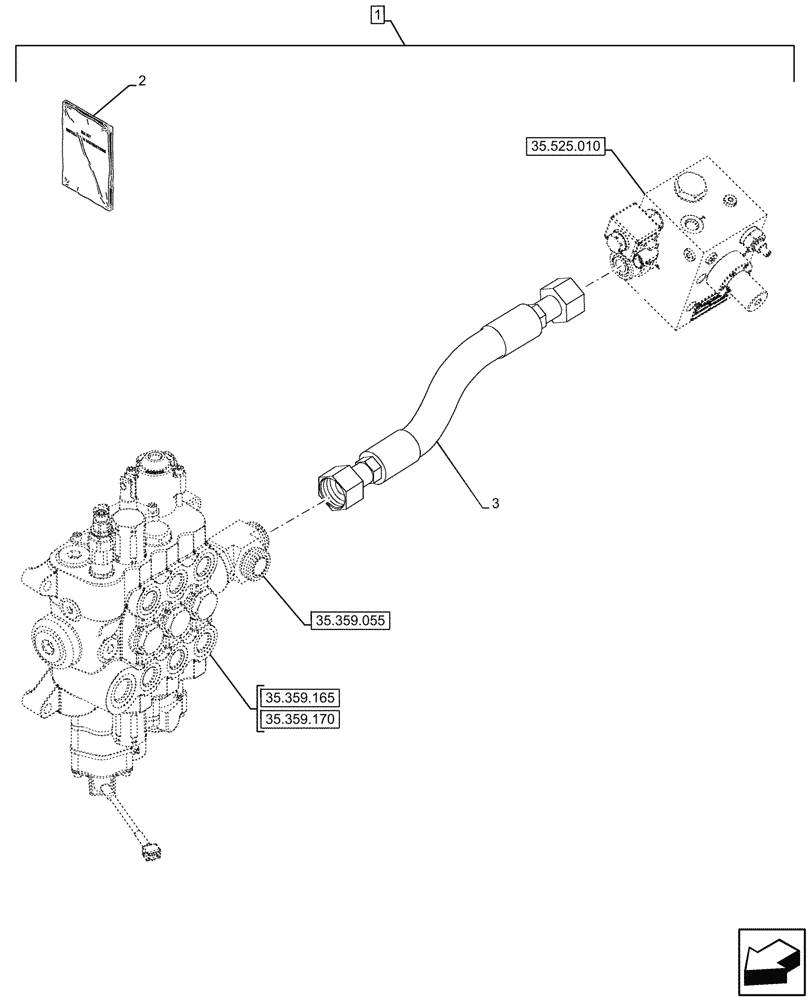

Схема запчастей Case 590SN - (88.100.35[16]) - DIA KIT, THREE SPOOL VALVE, MECHANICAL CONTROL, POWERSHUTTLE TRANSMISSION (88) - ACCESSORIES
35.359.055
2
1
3
35.359.165
35.359.170
35.525.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Powershuttle Transmission, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47961110

INSTRUCTION

1шт.

3

84256650

HOSE ASSY.,25mm ID x 954mm L

Loader Valve to Hammer Valve

1шт.

Выбрано товаров: 5
