(88.100.35[13]) - DIA KIT, CONVERSION 2 LEVER TO FOOT SWING, ROD

Запчасти Case 590SN (88.100.35[13]) - DIA KIT, CONVERSION 2 LEVER TO FOOT SWING, ROD (88) - ACCESSORIES

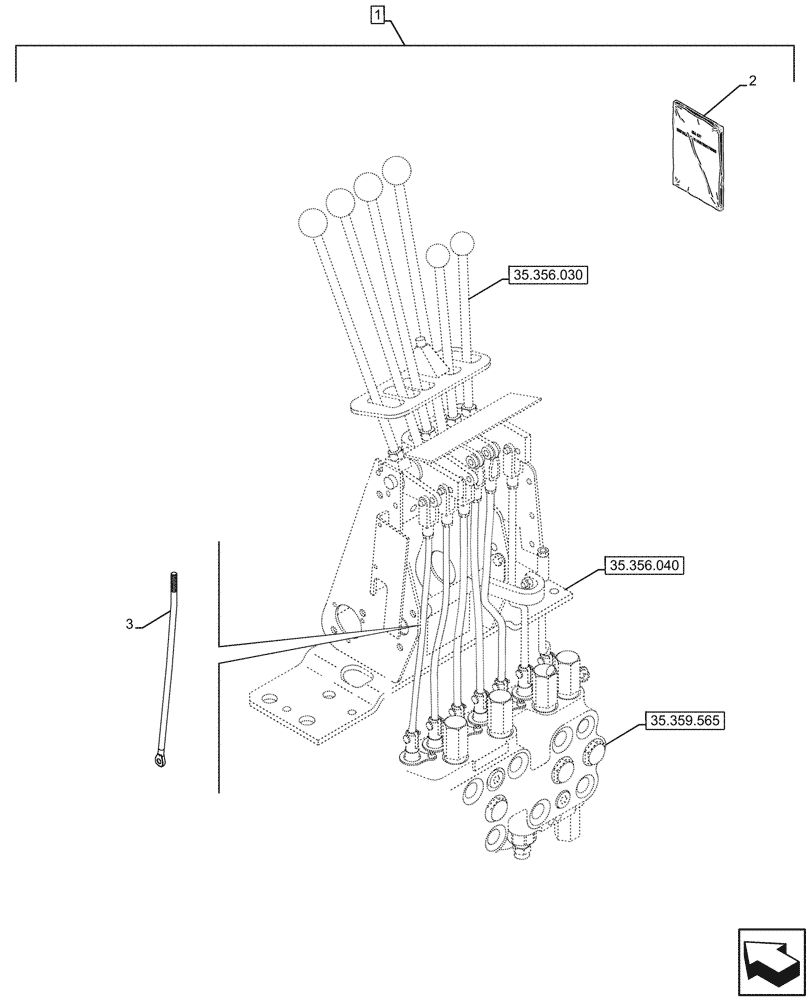

Схема запчастей Case 590SN - (88.100.35[13]) - DIA KIT, CONVERSION 2 LEVER TO FOOT SWING, ROD (88) - ACCESSORIES
35.356.030
1
3
2
35.359.565
35.356.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47945930

CONSTRUCTION DIA

Conversion 2 Lever to Foot Swing, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47944986

INSTRUCTION

1шт.

3

87446113

THREADED ROD

1шт.

Выбрано товаров: 5
