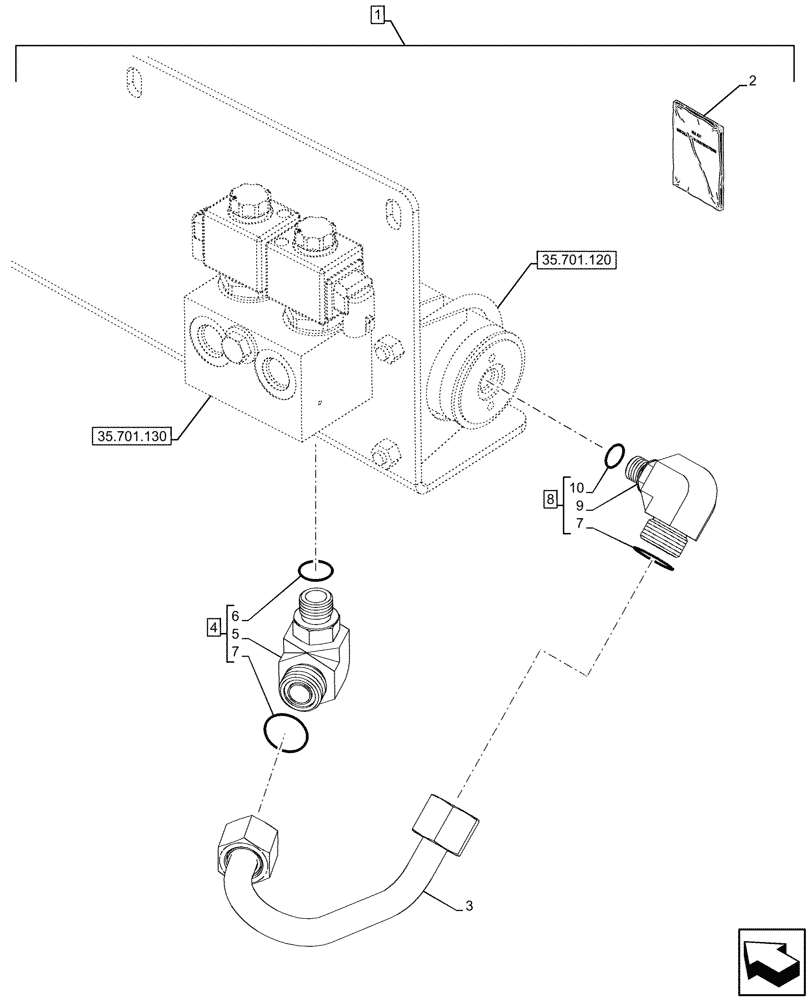

Запчасти Case 590SN (88.100.35[07]) - DIA KIT, AUTO RIDE CONTROL, POWERSHUTTLE TRANSMISSION, ACCUMULATOR, HYDRAULIC LINE, 4WD (88) - ACCESSORIES

1

47880146

CONSTRUCTION DIA

Auto Ride Control, Incl 2 - 10

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880149

INSTRUCTION

1шт.

3

84232491

HYD TUBE

Ride Control Valve to Accumulator

1шт.

4

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 5, 6, 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 7 (Qty 1), 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
