(84.912.120) - STANDARD DIPPER, W/O HYDRAULIC COUPLER

Запчасти Case 590SN (84.912.120) - STANDARD DIPPER, W/O HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

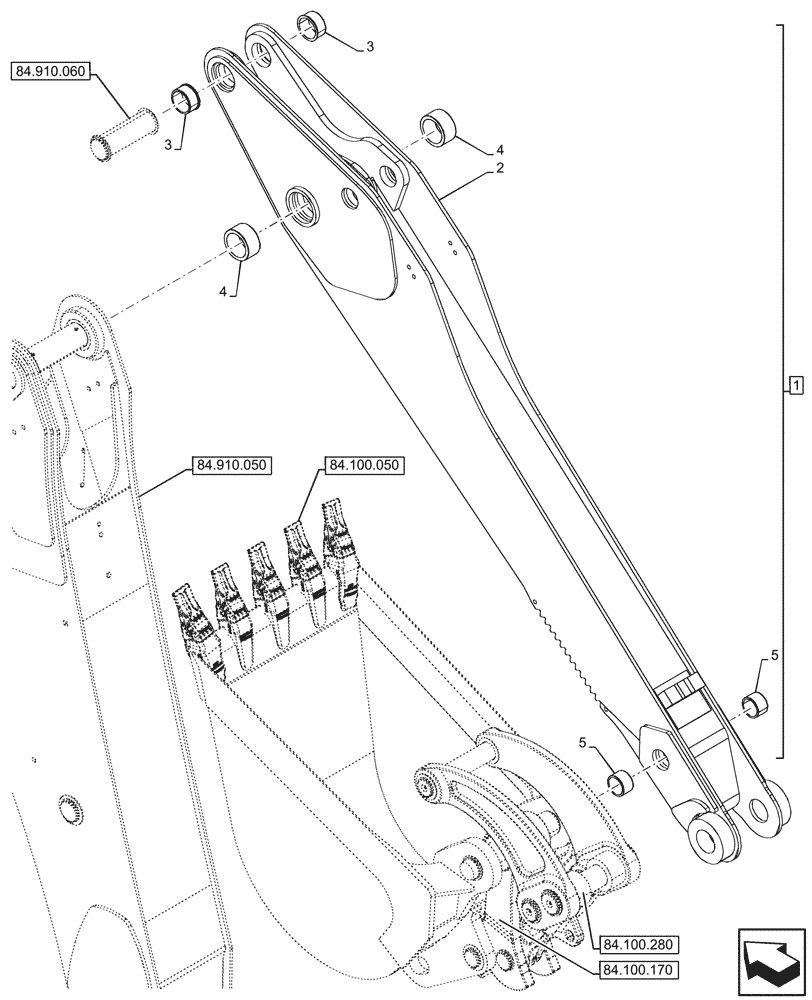

Схема запчастей Case 590SN - (84.912.120) - STANDARD DIPPER, W/O HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
84.100.050
3
3
4
4
2
1
5
5
84.100.170
84.910.060
84.100.280
84.910.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479340

DIPPER

ASSY, Power Tan, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

STD Dipper, Incl in 1

1шт.

3

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

2шт.

4

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

2шт.

5

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.
