Запчасти Case 590SN (84.100.280) - VAR - 442017 - BACKHOE BUCKET, MECH. COUPLER, LINK 15FT (84) - BOOMS, DIPPERS & BUCKETS

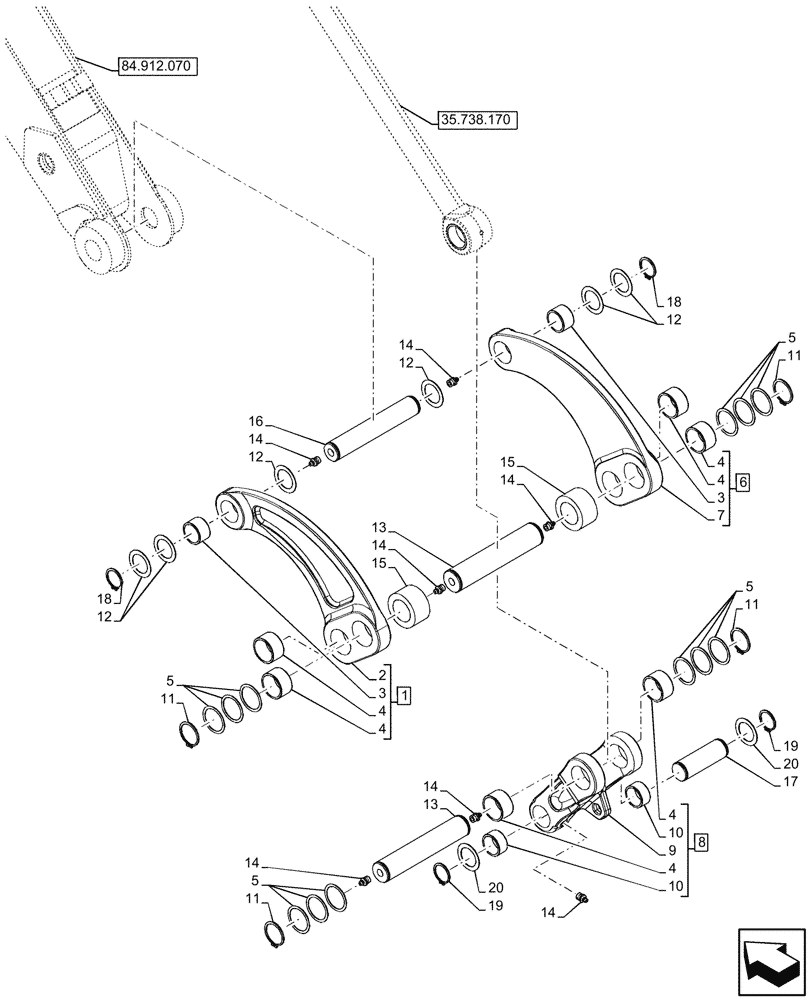

Схема запчастей Case 590SN - (84.100.280) - VAR - 442017 - BACKHOE BUCKET, MECH. COUPLER, LINK 15FT (84) - BOOMS, DIPPERS & BUCKETS
84.912.070
14
6
4
20
14
17
4
5
12
11
14
15
18
5
4
3
19
13
19
11
18
11
12
9
12
14
5
20
12
11
1
8
4
14
5
14
16
15
10
10
2
14
4
13
7
4
3
35.738.170

Артикул

Название

Примечание

Количество

1

47959422

LINK

ASSY, Grey, Incl 2, 3 (Qty 1), 4 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

6шт.

5

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

12шт.

6

47959423

LINK

ASSY, Grey, Incl 3 (Qty 1), 4 (Qty 2), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Link, Incl in 6

1шт.

8

47959656

LINK

ASSY, Grey, Incl 4 (Qty 2), 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Incl in 8

1шт.

10

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

2шт.

11

84224886

RING,60mm ID, Ext

4шт.

12

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

6шт.

13

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

15

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

16

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

17

84231817

PIN,55mm OD x 151mm L

Bucket Cylinder to Dipper

1шт.

18

87016943

RING, SNAP,50mm ID , Ext

2шт.

19

84233536

RING,55mm ID, Ext

2шт.

20

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

Выбрано товаров: 20
