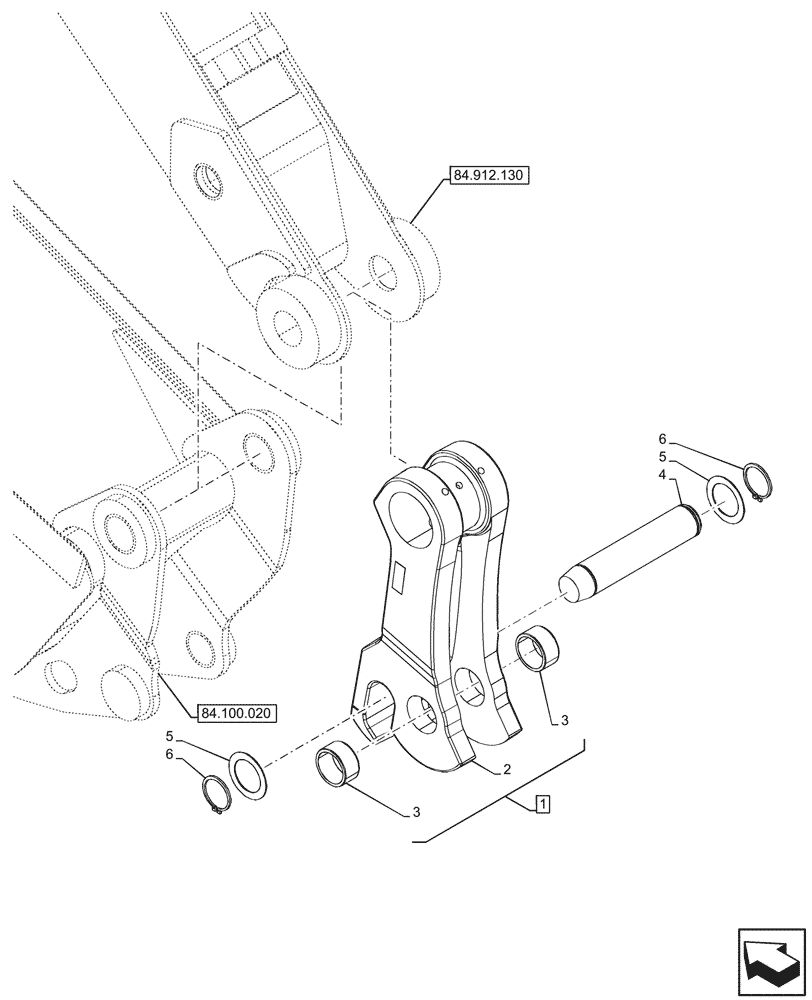

Запчасти Case 590SN (84.100.220) - VAR - 442017 - BACKHOE BUCKET, HYDRAULIC COUPLER, LINK (84) - BOOMS, DIPPERS & BUCKETS

1

47959571

LINK

ASSY, Grey, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

2шт.

4

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

5

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

6

87016943

RING, SNAP,50mm ID , Ext

2шт.
