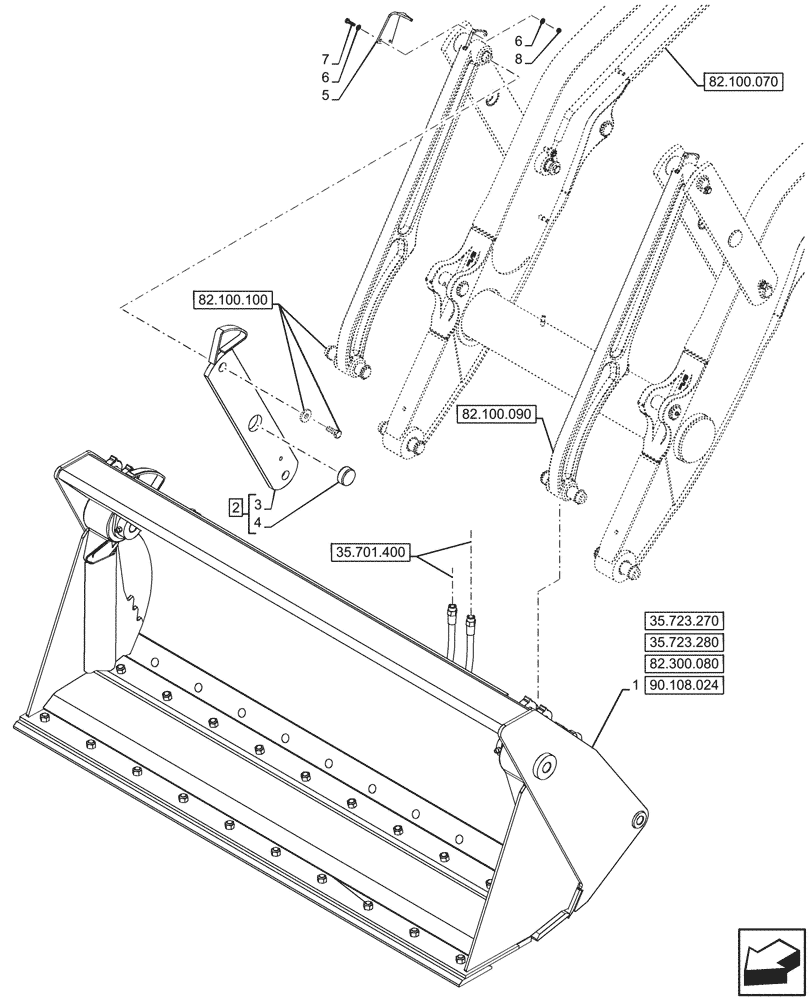

Запчасти Case 590SN (82.300.100) - VAR - 742433 - 4-IN-1 BUCKET, 93INCH/2362MM (82) - FRONT LOADER & BUCKET

1

47613232

4 IN 1 BUCKET,93" L

ASSY, 1.2 YD - 93 Inch2362mm

1шт.

2

47959575

LINK

ASSY, Grey, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

47865948

BUSHING,55.28mm ID x 64.99mm OD x 25.4mm L

1шт.

5

48017563

POINTER

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
