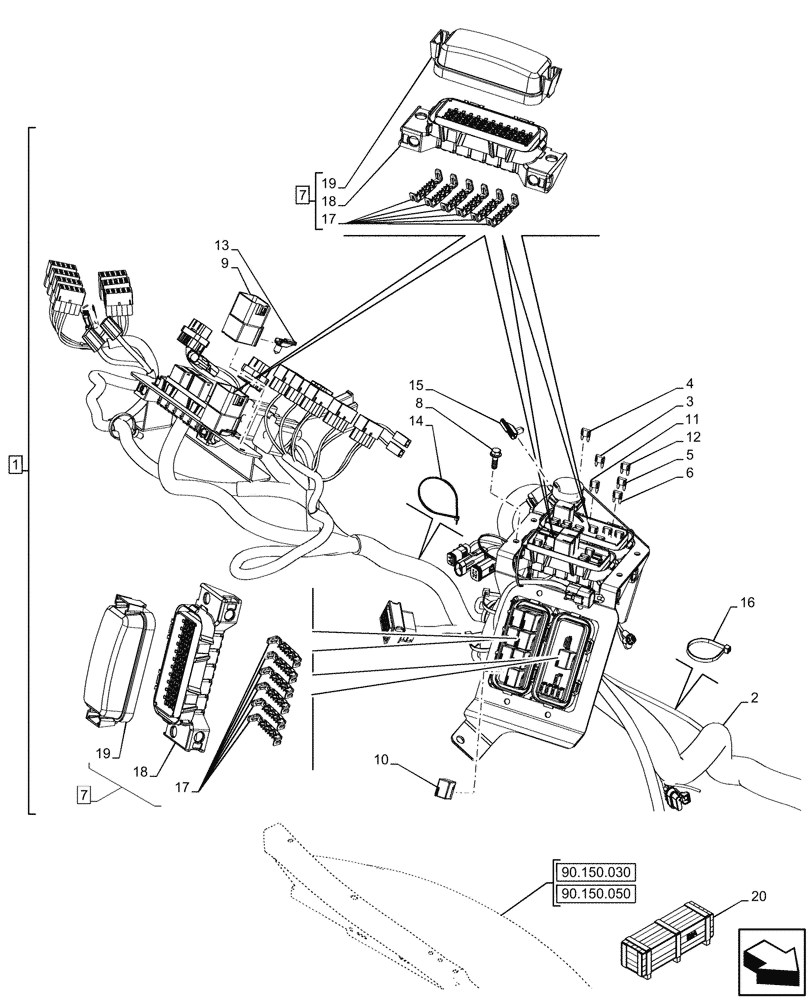

Запчасти Case 590SN (55.100.070) - VAR - 423058, 423059 - POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, HARNESS W/ OPT, FUSE BOX (55) - ELECTRICAL SYSTEMS

1

47714208

WIRE HARNESS

ASSY, Side Console, STD Transmission, Incl 2 - 8, 10 - 19

1шт.

See also Wire Harness Components in Figures 55.100.070, 55.510.040, 90.108.110

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

121411A1

FUSE,7.5A, Mini, Brown

2шт.

4

121412A1

FUSE,10A, Mini, Red

7шт.

5

121413A1

FUSE,15A, Mini, Blue

3шт.

6

121416A1

FUSE,30A, Mini, Green

4шт.

7

84380518

FUSE BOX

ASSY, Incl 17 - 19

5шт.

8

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

10шт.

9

84271717

RELAY,12V, 50A

Sealed

2шт.

10

87655334

RELAY,12V, 35A, Micro

15шт.

11

121410A1

FUSE,5A, Mini, Tan

11шт.

12

121414A1

FUSE,20A, Mini, Yellow

2шт.

13

84386626

WIRE CONNECTOR

Bracket Clip

2шт.

14

84292402

CABLE TIE,203mm L

4шт.

15

87707841

CLIP,Hole DIA 6.35mm

1шт.

16

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

4шт.

17

84342278

CONNECTING BLOCK

30шт.

18

NSS

NOT SOLD SEPARAT

Box, Incl in 7

5шт.

19

84404932

COVER

5шт.

20

47834894

CONSTRUCTION DIA

Cold Start Aid, Incl 3

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

47880146

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 11

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
