(55.024.100) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, CONTROL VALVE, 4WD

Запчасти Case 590SN (55.024.100) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, CONTROL VALVE, 4WD (55) - ELECTRICAL SYSTEMS

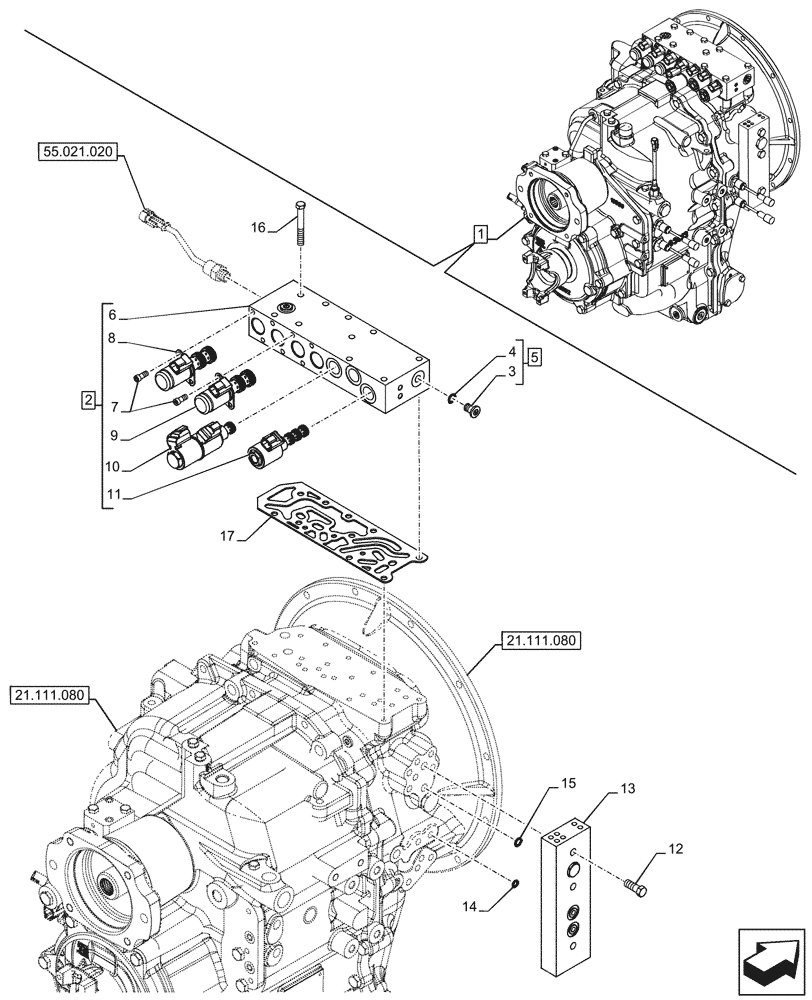

Схема запчастей Case 590SN - (55.024.100) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, CONTROL VALVE, 4WD (55) - ELECTRICAL SYSTEMS
55.021.020
13
16
6
9
1
17
11
12
8
15
3
7
4
10
2
5
14
21.111.080
21.111.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 17

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.111.080, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.031.070, 55.031.080

1шт.

2

84367060

CONTROL VALVE

ASSY, Semi-Powershift Transmission, Incl 6 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 3, 4

2шт.

6

84367062

CONTROL VALVE

Body

1шт.

7

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

8шт.

8

84367063

SOLENOID

ON/OFF Selector (Used for HDL)

2шт.

9

87705567

SOLENOID VALVE

Semi-Powershift Transmission

2шт.

10

84574140

SOLENOID

ON/OFF Selector (Used for S2/S4)

1шт.

11

84574141

SOLENOID

ON/OFF Selector (Used for S1/S3)

2шт.

12

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

5шт.

13

84367066

MANIFOLD

1шт.

14

100760A1

O-RING

12шт.

15

84367067

O-RING,26.65mm ID x 2.62mm Thk

1шт.

16

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

10шт.

17

84367061

GASKET

Control Valve

1шт.
