(41.216.050) - FRONT AXLE, COMPONENTS, STEERING CYLINDER, HD, 4WD

Запчасти Case 590SN (41.216.050) - FRONT AXLE, COMPONENTS, STEERING CYLINDER, HD, 4WD (41) - STEERING

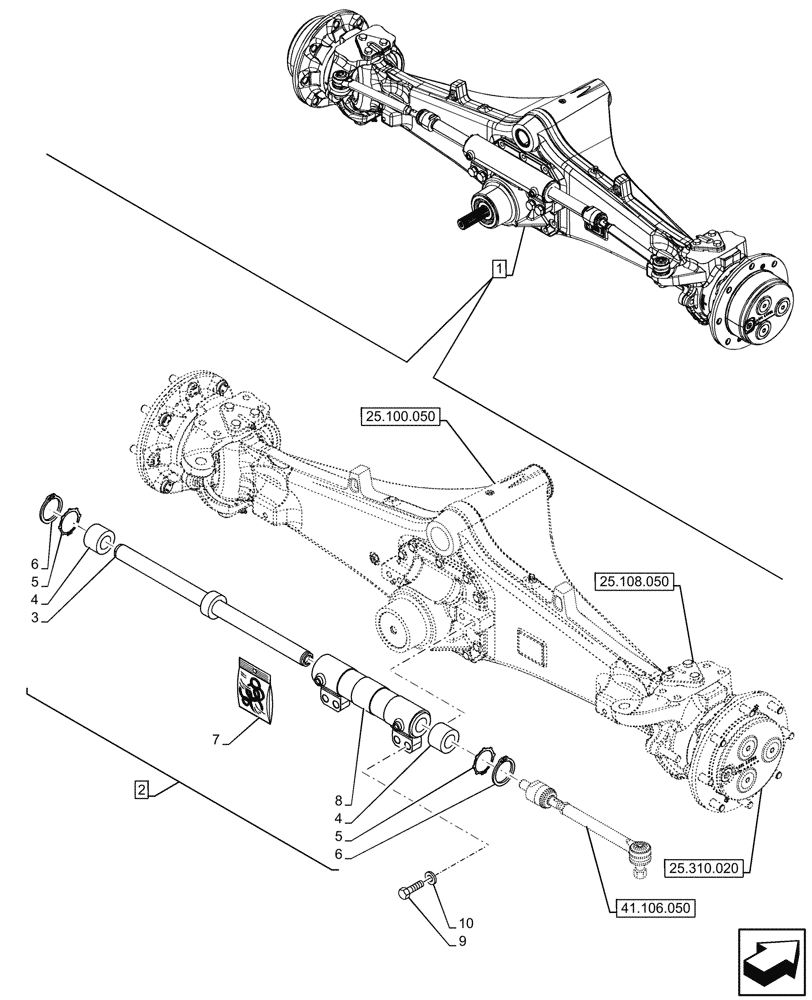

Схема запчастей Case 590SN - (41.216.050) - FRONT AXLE, COMPONENTS, STEERING CYLINDER, HD, 4WD (41) - STEERING
25.108.050
8
3
1
10
9
2
7
4
4
6
5
5
6
41.106.050
25.310.020
25.100.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559840

FRONT AXLE

ASSY, Grey, PS1428 ACP, 12.8-1, GR, Incl 2 - 10

1шт.

See also Front Axle Components in Figures 25.100.050, 25.100.060, 25.102.030, 25.102.040, 25.108.050, 25.108.060, 25.108.070, 25.108.080, 25.310.020, 41.106.050

1шт.

2

84264406

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke

ASSY, Incl 3 - 8

1шт.

3

84276953

ROD

Piston Steering Cylinder

1шт.

4

84276994

CYLINDER END CAP

Steering

2шт.

5

84276996

SNAP RING,70mm OD x 2mm Thk

2шт.

6

84276995

CIRCLIP,70mm Special

External

2шт.

7

84331720

SEAL KIT

Steering Cylinder, 4WD

1шт.

8

NSS

NOT SOLD SEPARAT

Protective Sleeve, Incl in 2

1шт.

9

47371337

BOLT,Hex, M18 x 1.5 x 60mm

4шт.

10

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.
