(41.216.030) - FRONT AXLE, STEERING TIE-ROD, COMPONENTS, 2WD

Запчасти Case 590SN (41.216.030) - FRONT AXLE, STEERING TIE-ROD, COMPONENTS, 2WD (41) - STEERING

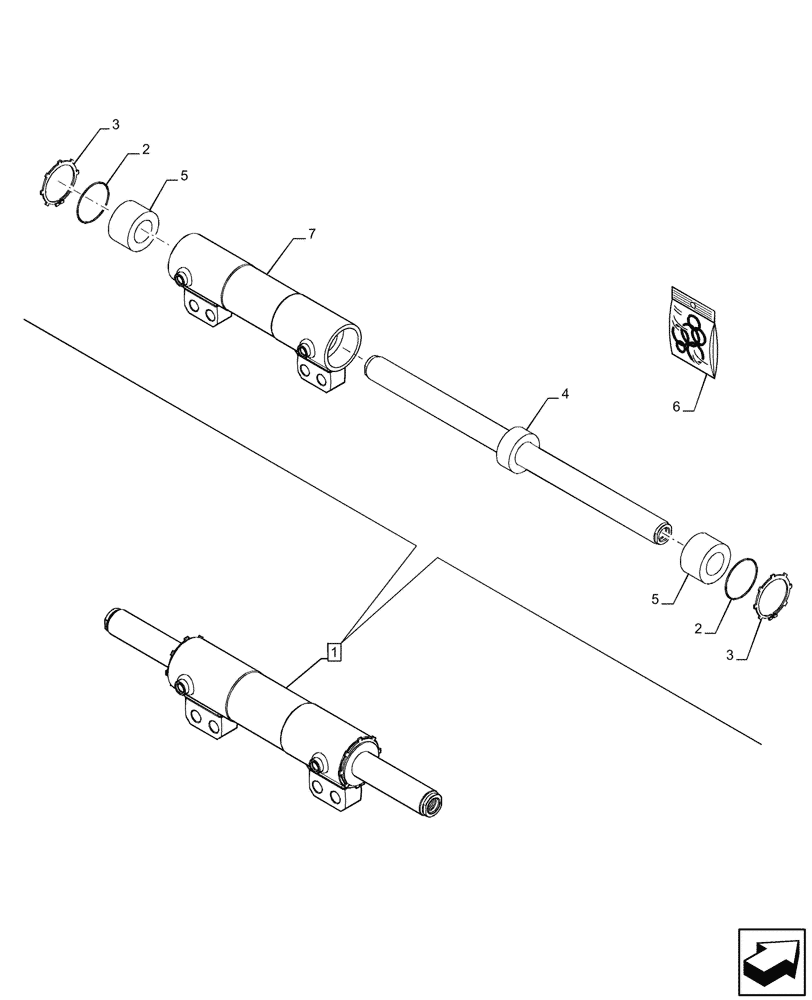

Схема запчастей Case 590SN - (41.216.030) - FRONT AXLE, STEERING TIE-ROD, COMPONENTS, 2WD (41) - STEERING
2
7
4
3
5
2
3
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84264406

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke

ASSY, Incl 2 - 7

1шт.

2

84276996

SNAP RING,70mm OD x 2mm Thk

2шт.

3

84276995

CIRCLIP,70mm Special

External

2шт.

4

84276953

ROD

Piston Steering Cylinder

1шт.

5

84276994

CYLINDER END CAP

Steering

2шт.

6

84331720

SEAL KIT

Steering Cylinder, 4WD

1шт.

7

NSS

NOT SOLD SEPARAT

Steering Cylinder, Incl in 1

1шт.
