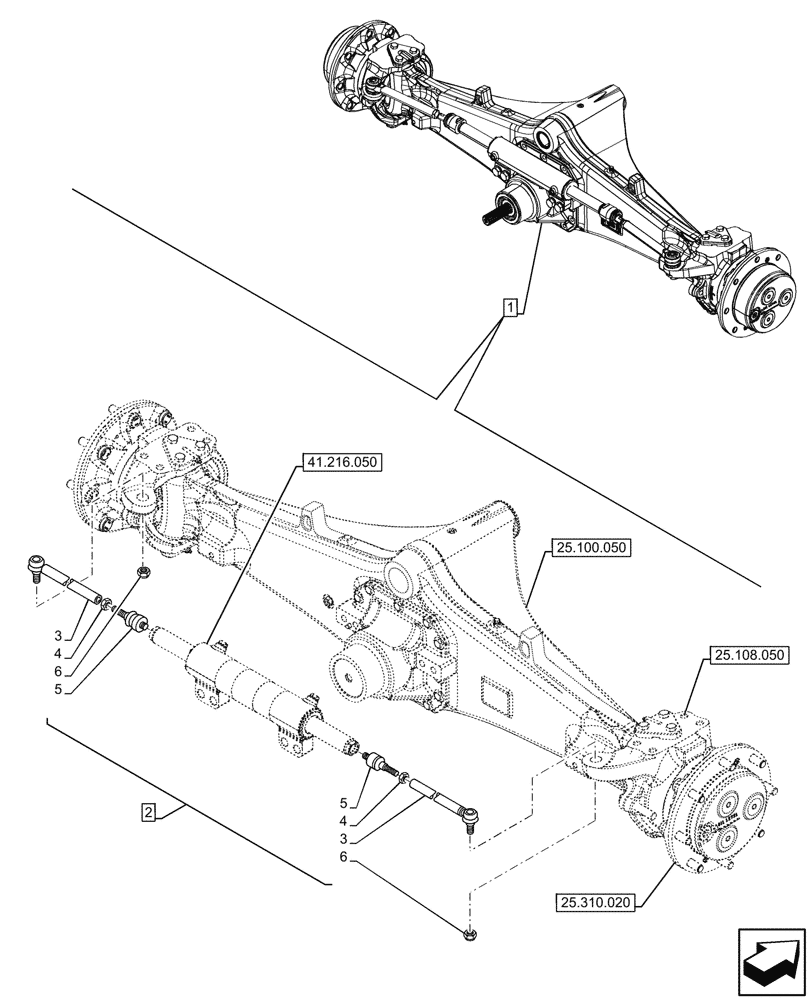

Запчасти Case 590SN (41.106.050) - FRONT AXLE, COMPONENTS, STEERING TIE-4WD, HD, 4WD (41) - STEERING

1

47559840

FRONT AXLE

ASSY, Grey, PS1428 ACP, 12.8-1, GR, Incl 2 - 6

1шт.

See also Front Axle Components in Figures 25.100.050, 25.100.060, 25.102.030, 25.102.040, 25.108.050, 25.108.060, 25.108.070, 25.108.080, 25.310.020, 41.216.050

1шт.

2

84264410

TIE-ROD,397mm L

ASSY, Incl 3 - 6

2шт.

3

84276565

BALL JOINT,36mm OD x 282mm L

Tie Rod

2шт.

4

87489982

NUT,M24 x 1.5, Cl. 8

2шт.

5

87489984

BALL JOINT,444.1mm L

Tie Rod

2шт.

6

87489983

NUT,M24 x 1.5, Cl. 10

2шт.
