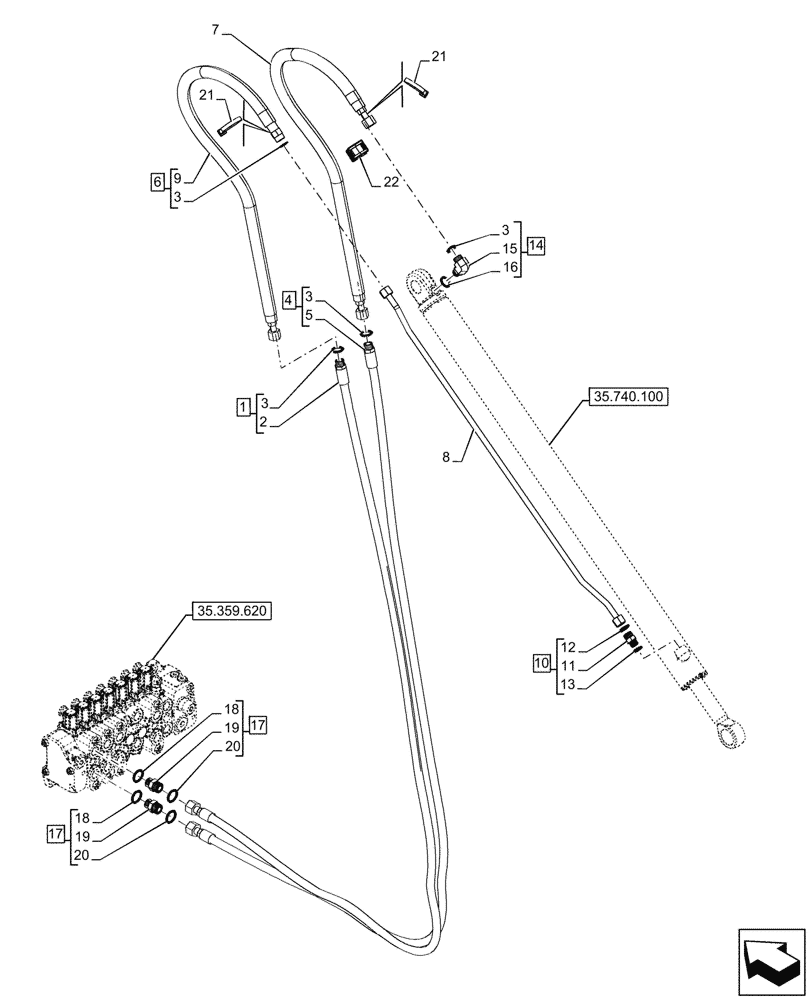

Запчасти Case 590SN (35.740.110) - VAR - 423076 - COLD CLIMATE, EXTENDABLE DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47831627

HYDRAULIC HOSE,16mm ID x 3122mm L

ASSY, Valve to Backhoe - Cylinder Rod, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

4

47831626

HYDRAULIC HOSE,16mm ID x 3114mm L

ASSY, Valve to Backhoe - Cylinder Head, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

47829695

HYDRAULIC HOSE,12.5mm ID x 845mm L

ASSY, Backhoe Cylinder Rod, Incl 3 (Qty 1), 9

1шт.

7

47829696

HYDRAULIC HOSE,12.5mm ID x 840mm L

Backhoe Cylinder Head

1шт.

8

84295705

RIGID TUBE

Backhoe Cylinder Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Hose, Incl in 6

1шт.

10

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 3 (Qty 1), 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 14

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 18 - 20

2шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

2шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

22

86982400

SPACER

1шт.
