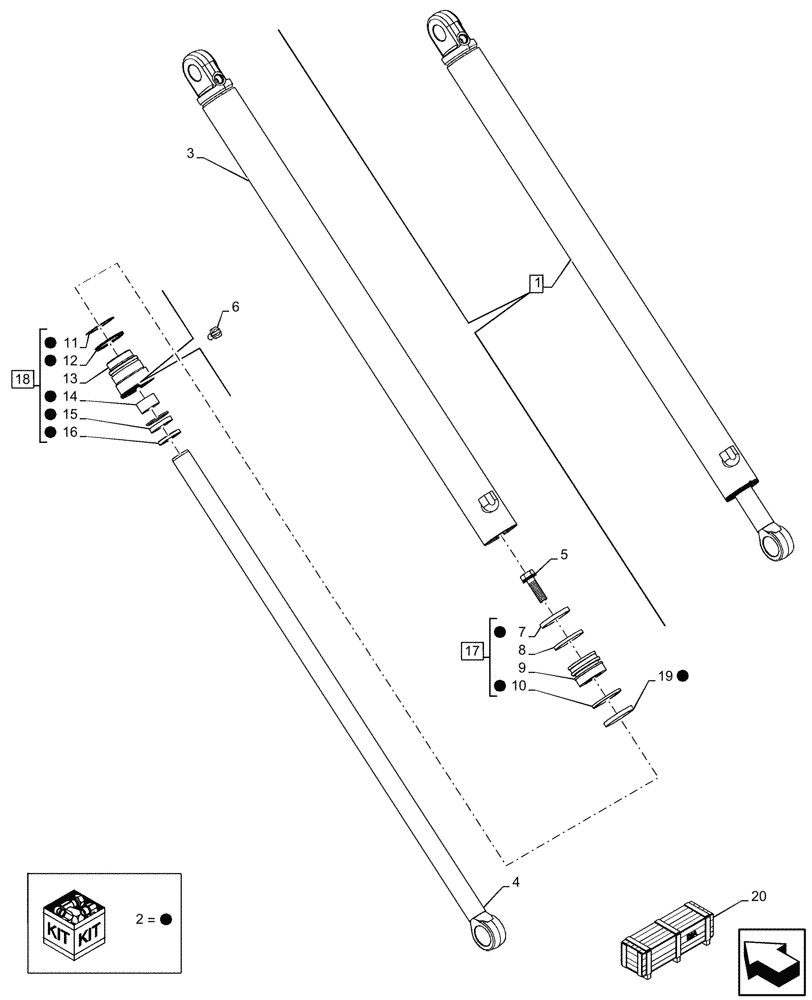

Запчасти Case 590SN (35.740.070) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84421679

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.04mm Bore, 1220mm Stroke

ASSY, Grey, Extendable Dipper, Incl 2 - 19

1шт.

2

86982377

SEAL KIT

ASSY, Clam Cylinder, Incl 7, 10 - 12, 14 - 16, 19

1шт.

3

84182377

TUBE,76mm Bore Dia

1шт.

4

84182379

ROD,44.4mm OD x 1550.7mm L

1шт.

5

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

7

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

8

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

9

G107277

PISTON

1шт.

10

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

12

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

13

297281A1

GLAND

1шт.

14

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

15

1542875C1

SEAL KIT,44.4mm Rod

Extendable Dipper Cylinder, Rod and Buffer

1шт.

16

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

17

G107276

GLAND

ASSY, Incl 7 - 10

1шт.

18

1542987C1

GLAND

ASSY, Incl 11 - 16

1шт.

19

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

20

47945950

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 19

1шт.

Valid for 590SN (Livery) Model Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

20

47946552

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 19

1шт.

Valid for 590SN (Livery) Model Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
