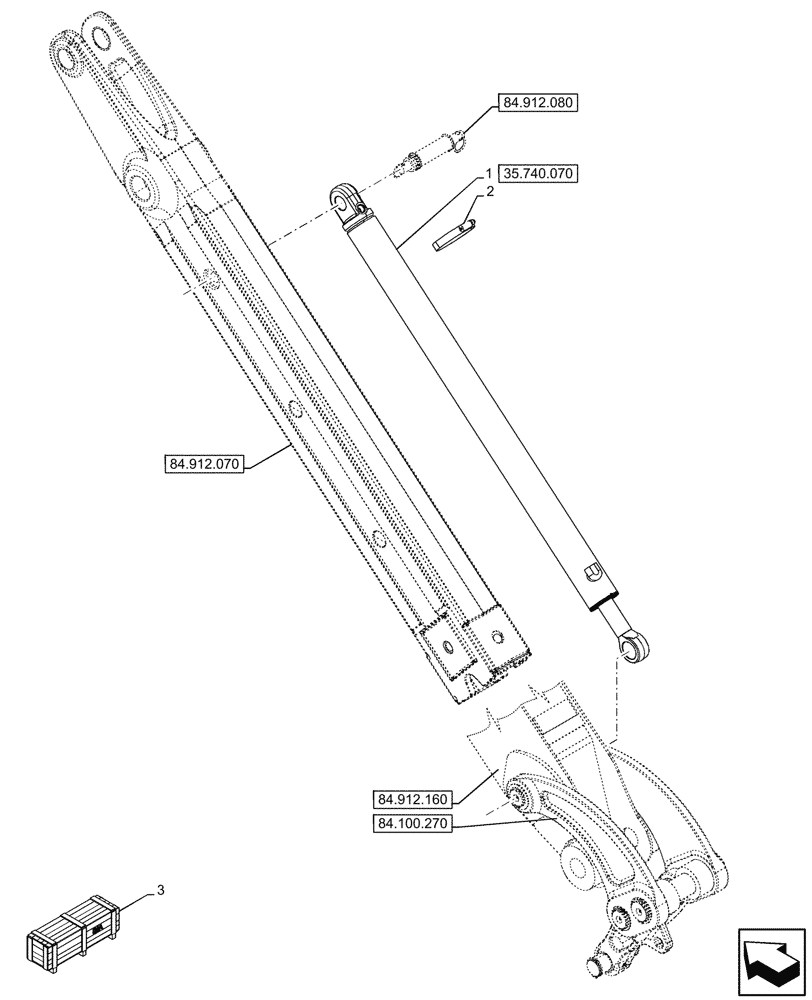

Запчасти Case 590SN (35.740.050) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421679

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.04mm Bore, 1220mm Stroke

ASSY, Grey, Extendable Dipper

1шт.

2

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

3

47945950

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 590SN (Livery) Model Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47946552

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 590SN (Livery) Model Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
