Запчасти Case 590SN (35.739.110) - VAR - 423078, 742369, 745165, 745166, 747669 - BOOM SWING, MECHANICAL, CONTROLS, DAMPING VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

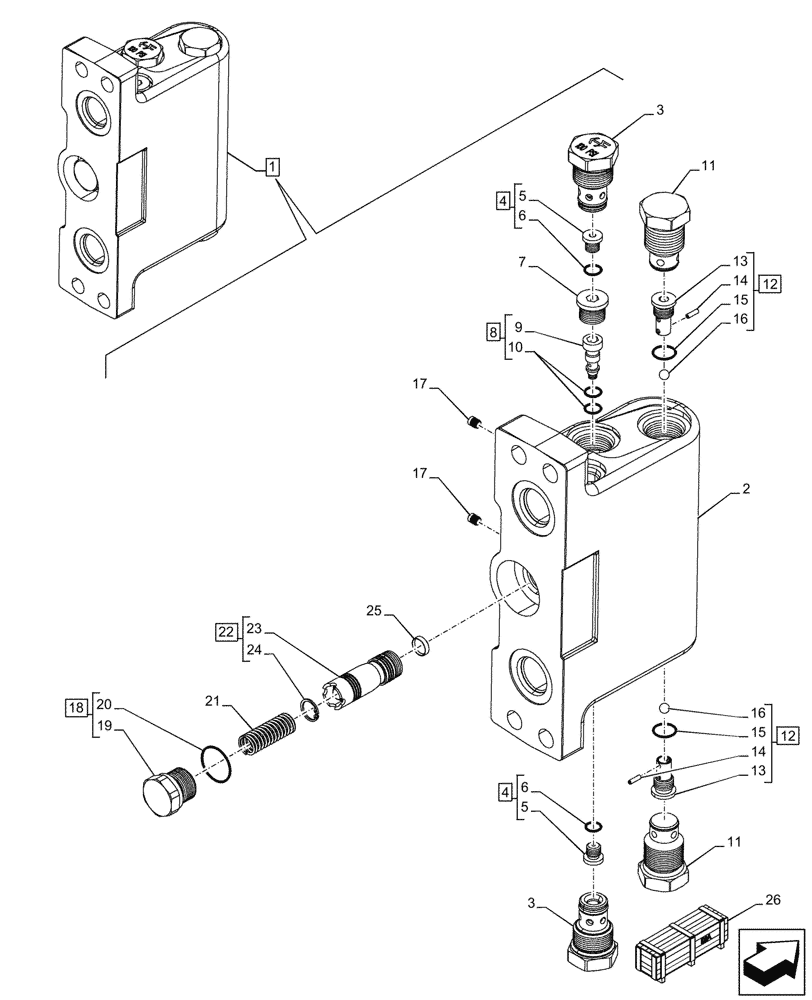

Схема запчастей Case 590SN - (35.739.110) - VAR - 423078, 742369, 745165, 745166, 747669 - BOOM SWING, MECHANICAL, CONTROLS, DAMPING VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
4
5
19
12
6
11
7
5
21
10
11
4
24
13
14
26
15
8
6
16
3
22
2
1
15
3
12
20
13
16
17
18
25
17
14
9
23

Артикул

Название

Примечание

Количество

1

87480653

DAMPING VALVE

ASSY, Incl 2 - 25

1шт.

2

87416976

VALVE BODY

1шт.

3

396422A2

VALVE, CHECK

2шт.

4

400657A1

PLUG,1.85mm Hole

ASSY, Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

2шт.

6

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2шт.

7

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

8

388712A2

VALVE

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 8

1шт.

10

388713A1

SEAL KIT

Damping Valve

1шт.

11

87753055

CHECK VALVE

2шт.

12

400296A2

VALVE, CHECK

ASSY, Incl 13 - 16

2шт.

13

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 12

2шт.

14

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

16

211-1007

BALL,7/32" Dia

2шт.

17

369372A1

PLUG,6.5mm OD x 5mm L

2шт.

18

409025A1

PLUG,Hex, 3/4" - 16 ORB

ASSY, Incl 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 18

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

388881A1

COIL SPRING,Compression, 12.20mm OD x 59.21mm L

1шт.

22

87449374

SPOOL

ASSY, Incl 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Spool, Incl in 22

1шт.

24

100-2150

SNAP RING,0.50", Int, #50

1шт.

25

1976955C1

FILTER SCREEN

1шт.

26

47677939

CONSTRUCTION DIA

Swing Dampening, Incl 1 - 25

1шт.

Valid for 580N EP (Livery) Model Only, W/ Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47685062

CONSTRUCTION DIA

Swing Dampening, Incl 1 - 25

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 31
