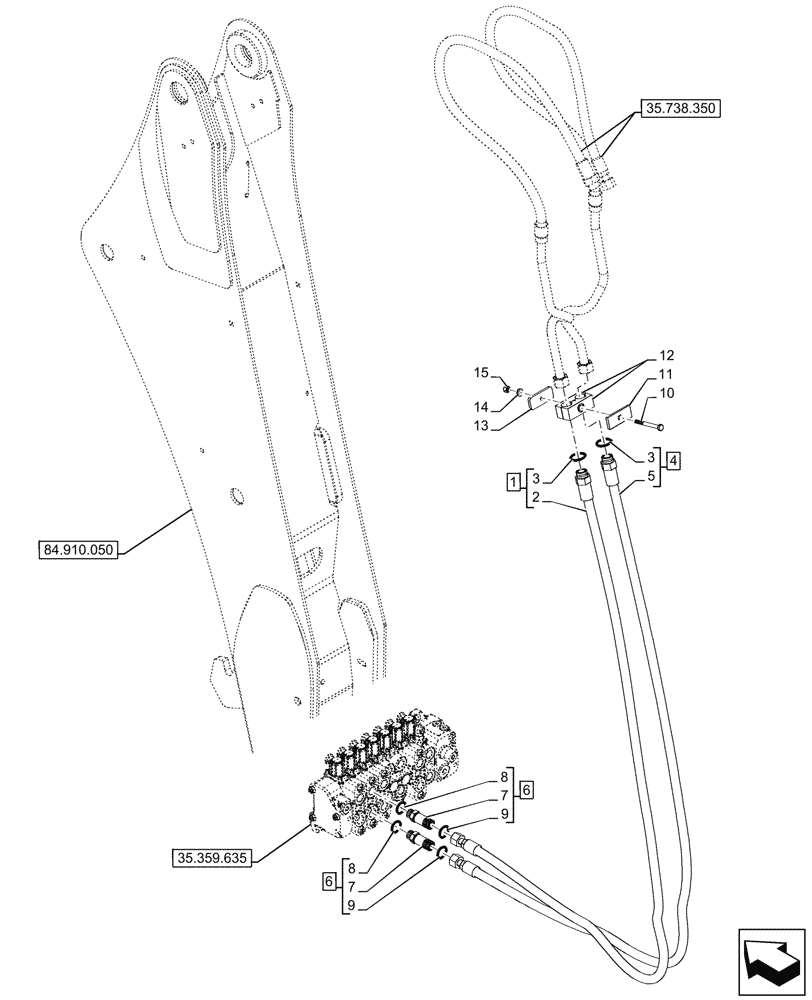

Запчасти Case 590SN (35.738.340) - VAR - 423076 - COLD CLIMATE, BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84264050

HOSE ASSY.,19mm ID x 2814mm L

Valve to Bucket - Cylinder Rod

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

4

84264049

HOSE ASSY.,19.05mm ID x 2772mm L, SAE 100R16

Valve to Bucket - Cylinder Rod

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

87393627

HYD CONNECTOR

ASSY, Incl 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

10

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

11

84283495

SECURING STRAP

2шт.

12

87000152

CLAMP,25.4mm D Clamping Pipes x 2

2шт.

13

84342644

PLATE

2шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

15

412250

NUT,M8 x 1.25, Cl 8

2шт.
