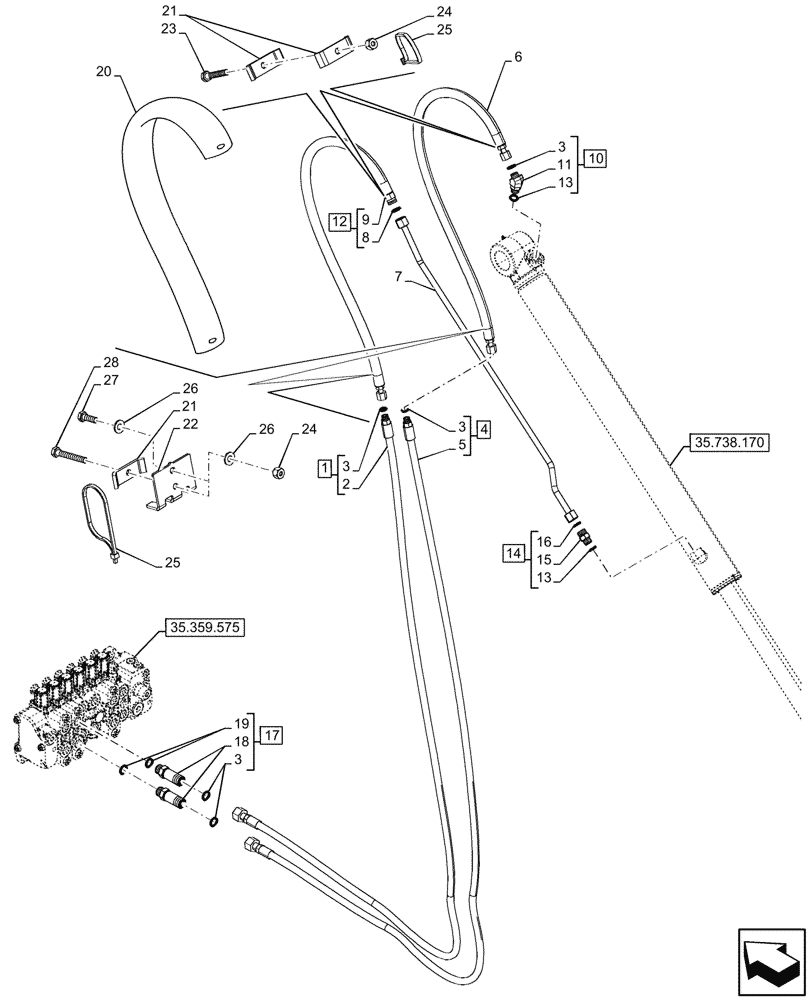

Запчасти Case 590SN (35.738.180) - VAR - 423075 - BACKHOE BUCKET, STANDARD DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84264059

HOSE ASSY.,19mm ID x 2825mm L

Valve to Bucket - Cylinder Rod, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

4

84262450

HOSE ASSY.,19mm ID x 2825mm L

Valve to Bucket, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

84399341

HOSE ASSY.,19mm ID x 1267mm L

Bucket Head

1шт.

7

84305542

TUBE

Bucket Cylinder Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Incl in 12

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

10

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

ASSY, Incl 3 (Qty 1), 11, 13 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 10

1шт.

12

84399343

HOSE ASSY.,19mm ID x 1273mm L

Bucket Rod

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

14

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

ASSY, Incl 13 (Qty 1), 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

17

87393627

HYD CONNECTOR

ASSY, Incl 3 (Qty 2), 18, 19

2шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

2шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

20

84321337

SLEEVE,1245mm L

1шт.

21

D143846

CLAMP

3шт.

22

84408244

HOSE CLAMP

1шт.

23

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

24

412141

NUT,M10 x 1.5, Cl 8

3шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

26

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

27

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

28

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.
