Запчасти Case 590SN (35.738.170) - VAR - 423075 - BACKHOE BUCKET, STANDARD DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

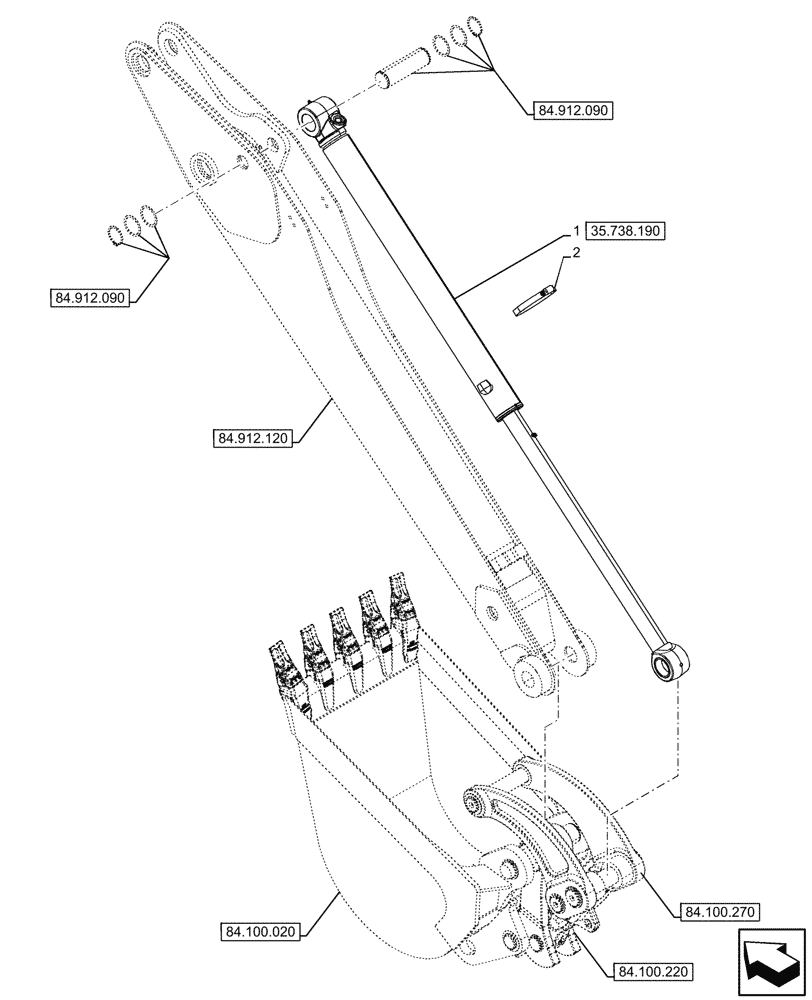

Схема запчастей Case 590SN - (35.738.170) - VAR - 423075 - BACKHOE BUCKET, STANDARD DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS
84.912.090
2
1
84.100.020
35.738.190
84.100.270
84.100.220
84.912.120
84.912.090

Артикул

Название

Примечание

Количество

1

84421596

HYDRAULIC CYLINDER,Double Acting, 63.48mm Rod, 88.9mm Bore, 989.4mm Stroke

ASSY, Grey, Bucket

1шт.

1

84421596R

Reman Cylinder

REMAN-HYD CYLINDER

1шт.

1

84421596C

Return Number

CORE-HYD CYLINDER

1шт.

2

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

Выбрано товаров: 4
