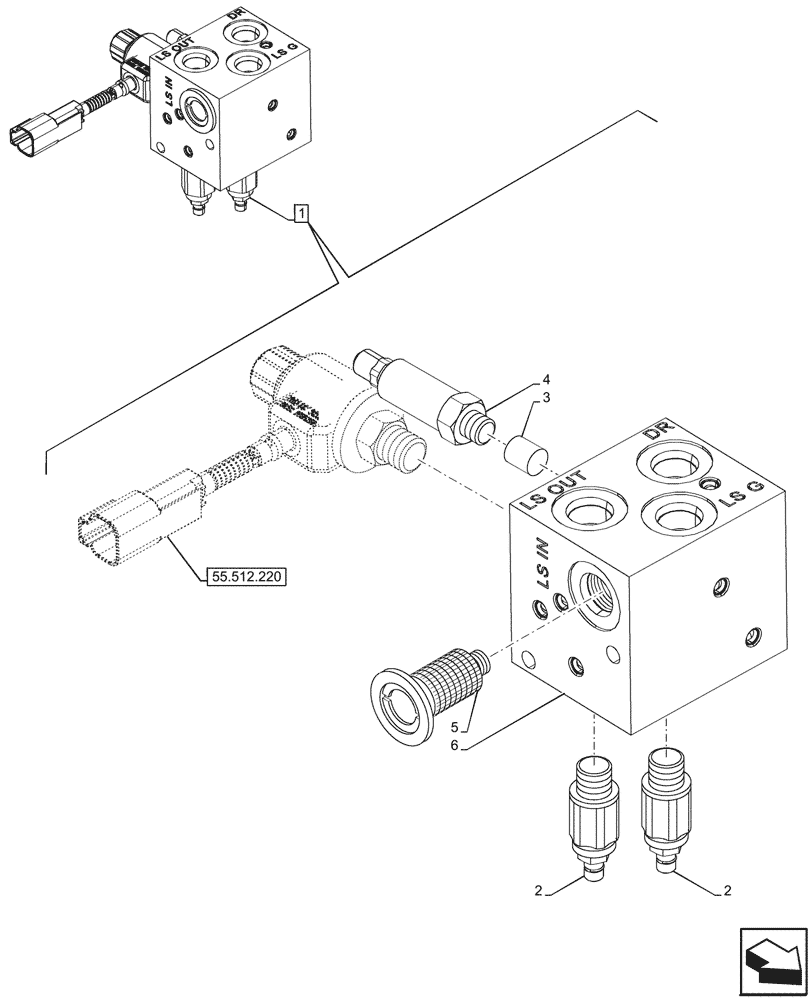

Запчасти Case 590SN (35.738.080) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84527718

CONTROL VALVE

ASSY, Heavy Lift Pilot Control, Incl 2 - 6

1шт.

See also Control Valve Components in Figure 55.512.220

1шт.

2

84338932

VALVE

Heavy Lift Relief

2шт.

3

84564260

FILTER SCREEN

Heavy Lift Pilot

1шт.

4

84338937

VALVE

Heavy Lift Load Sense Drain

1шт.

5

84564258

ORIFICE,0.11" ID

1шт.

6

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.
