Запчасти Case 590SN (35.737.060) - DIPPER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

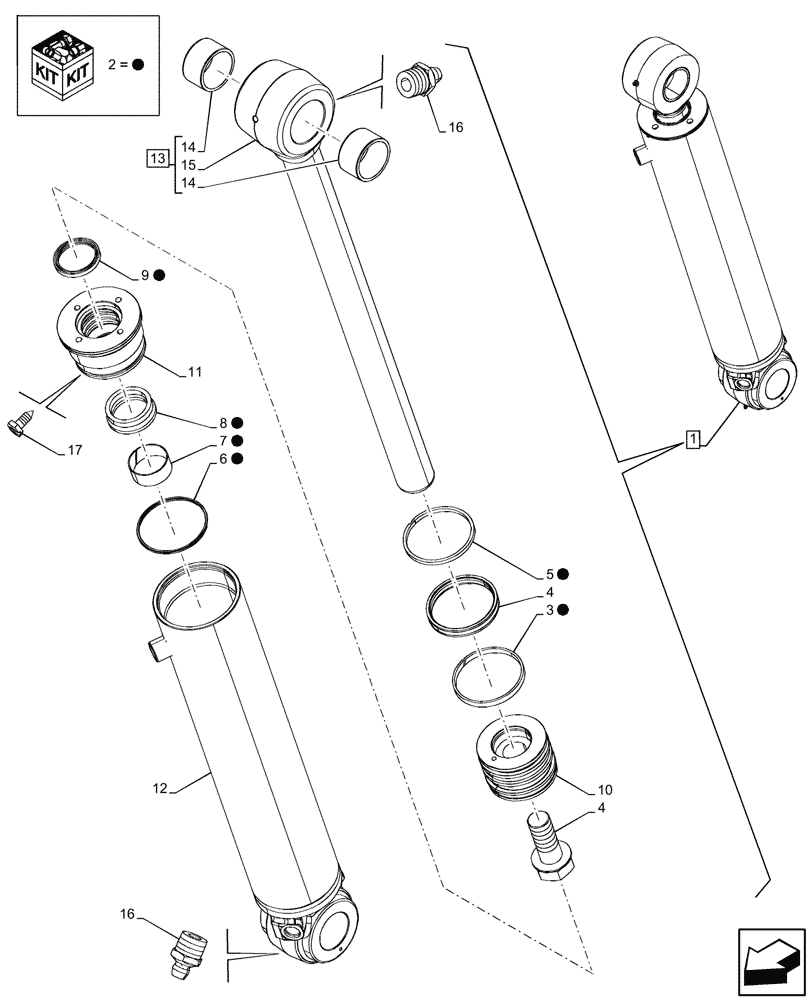

Схема запчастей Case 590SN - (35.737.060) - DIPPER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
9
2
16
12
2
16
11
15
8
2
10
2
4
14
2
17
2
14
6
4
5
3
13
1
2
7

Артикул

Название

Примечание

Количество

1

47458145

HYDRAULIC CYLINDER,69.9mm Rod, 133.4mm Bore, 597.7mm Stroke

ASSY, Grey, Dipper, Incl 2 - 17

1шт.

2

84259223

SEAL KIT,69.9mm Rod x 133.4mm Bore

ASSY, Backhoe Dipper Cylinder, Incl 3, 5 - 9

1шт.

3

444640A1

WEAR RING,Split, 127.05mm ID x 133.4mm OD x 19.05mm Thk

1шт.

4

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1шт.

5

87402623

RING,Locking, 128.15mm ID x 137.35mm OD x 7.11mm Thk

1шт.

6

87615486

SEAL,124.94mm ID x 132.1mm OD x 4.85mm Thk

1шт.

7

252790A1

BEARING,2.75mm ID x 69.85mm OD x 25.15 W

1шт.

8

1542880C1

PACKAGE

1шт.

9

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

1шт.

10

84302986

PISTON

1шт.

11

84233198

GLAND

1шт.

12

84302991

BARREL,133.22mm Bore Dia

1шт.

13

84594317

ROD,69.8mm OD

ASSY, Incl 14, 15

1шт.

14

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

2шт.

15

NSS

NOT SOLD SEPARAT

Rod, Incl in 13

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

Выбрано товаров: 17
