(35.737.050) - DIPPER, CYLINDER, LINE

Запчасти Case 590SN (35.737.050) - DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

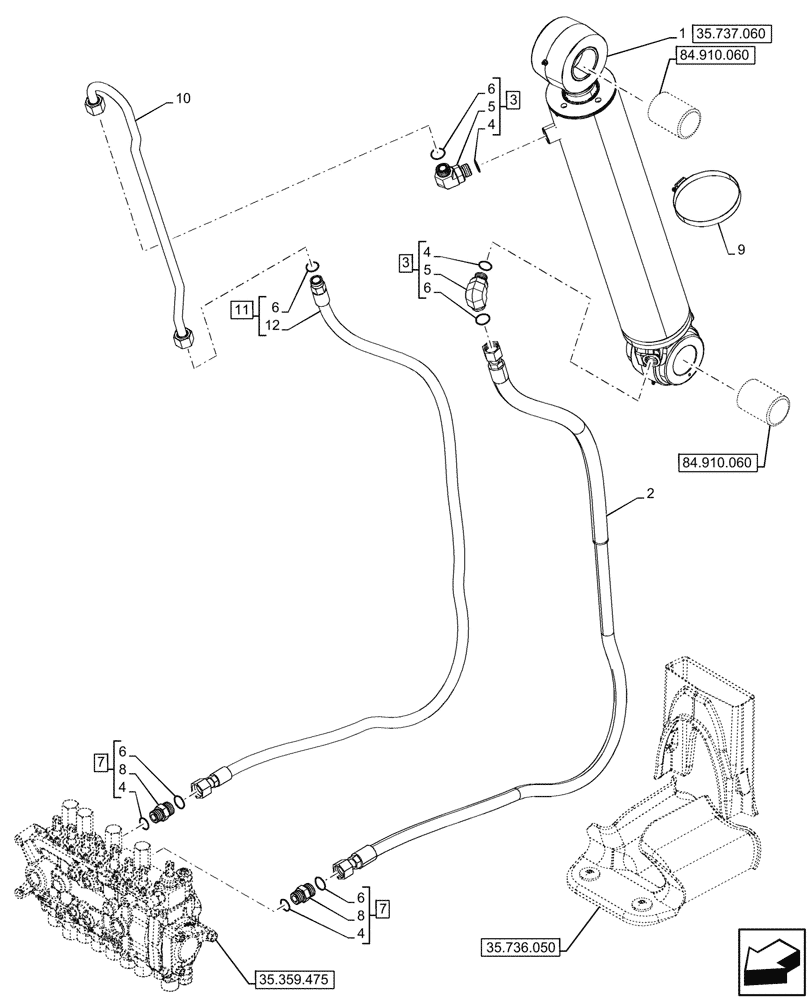

Схема запчастей Case 590SN - (35.737.050) - DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
35.359.475
9
10
8
5
6
6
4
12
3
4
4
7
8
6
1
11
5
4
3
7
6
2
6
35.737.060
84.910.060
84.910.060
35.736.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47458145

HYDRAULIC CYLINDER,69.9mm Rod, 133.4mm Bore, 597.7mm Stroke

ASSY, Grey, Dipper

1шт.

2

84281984

HYDRAULIC HOSE,19mm ID x 2268mm L

Dipper Cylinder Head

1шт.

3

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 4 (Qty 2), 5, 6 (Qty 2)

2шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

2шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 4 (Qty 2), 6 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

9

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

2шт.

10

48030640

HYD TUBE

Backhoe Valve to Dipper Cylinder Rod Line

1шт.

10

84323406

HYD TUBE

Dopper Cylinder Rod

1шт.

11

48028304

HYDRAULIC HOSE,16mm x 2275mm L

ASSY, Dipper Cylinder Rod, 2275mm, Incl 6 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Hose, Incl in 11

1шт.
