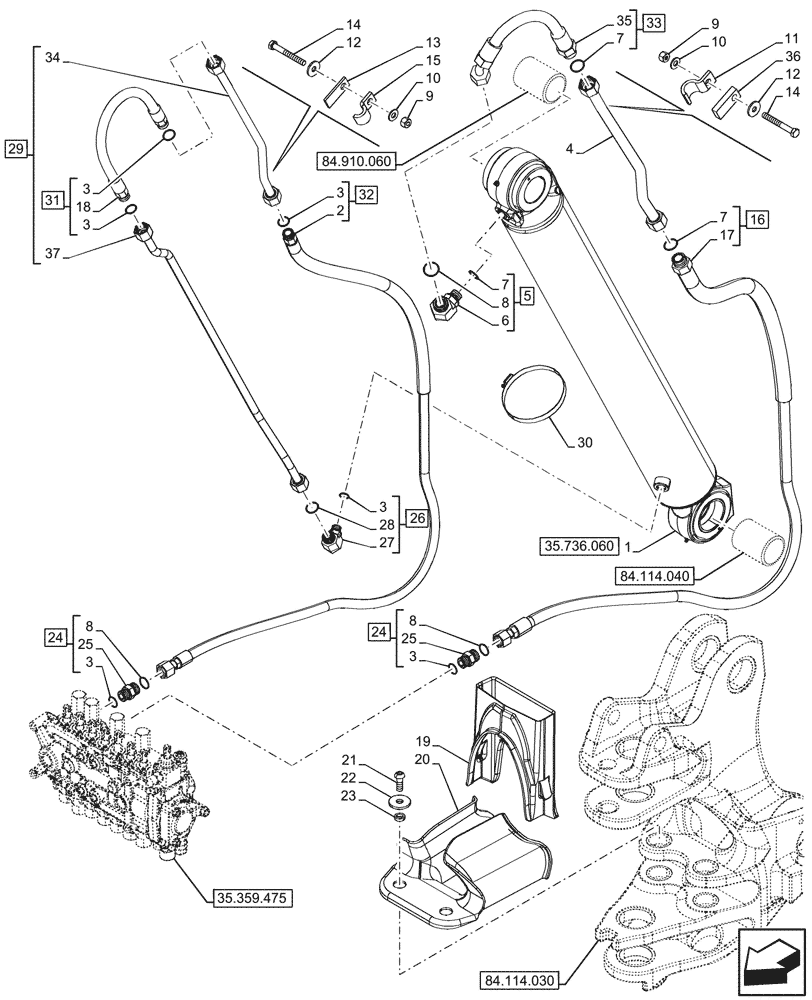

Запчасти Case 590SN (35.736.050) - BACKHOE BOOM CYL. SECTION, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84421589

HYDRAULIC CYLINDER,Double Acting, 69.9mm Rod, 139.7mm Bore, 1030.5 Stroke

ASSY, Grey, Boom

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 32

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

4

48029446

HYD TUBE

Backhoe Valve to Boom Cylinder Head Line

1шт.

5

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

ASSY, Incl 6, 7 (Qty 1), 8 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

9

412141

NUT,M10 x 1.5, Cl 8

4шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

11

242459A1

SHIN

2шт.

12

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

13

84259030

SPACER

2шт.

14

120074

BOLT,Hex, M10 x 90, 8.8

4шт.

15

84367726

CLAMP,3/4" Clamping tube

2шт.

16

84281986

HYDRAULIC HOSE,19mm ID x 2262mm L

ASSY, Valve to Boom, Incl 7 (Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

Hose, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Hose, Incl in 31

1шт.

19

84574630

GUARD

Black

1шт.

20

84303525

GUARD

Black

1шт.

21

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

22

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

23

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

24

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 3 (Qty 2), 8 (Qty 2), 25

2шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 24

2шт.

26

87656136

HYD CONNECTOR

ASSY, Incl 3 (Qty 1), 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 26

1шт.

28

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

84276920

HYD TUBE

ASSY, Boom Cylinder Rod, Incl 3 (Qty 2), 18, 31, 34, 37

1шт.

30

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

2шт.

31

48030364

HYDRAULIC HOSE,Double Acting, 16mm x 555mm L

ASSY, Boom Cylinder Rod, 555mm, Incl 3 (Qty 2), 18

1шт.

32

84263823

HYDRAULIC HOSE,16mm ID x 2247mm L

ASSY, Valve to Boom, Incl 2, 3 (Qty 1)

1шт.

33

48028199

HYDRAULIC HOSE,19mm ID x 461mm L

ASSY, Boom Cylinder Head, 461mm, Incl 7 (Qty 1), 35

1шт.

34

48030313

HYD TUBE

Backhoe Valve to Boom Cylinder Rod Line

1шт.

35

NSS

NOT SOLD SEPARAT

Hose, Incl in 33

1шт.

36

48029817

SPACER

2шт.

37

NSS

NOT SOLD SEPARAT

Tube, Incl in 29

1шт.
