Запчасти Case 590SN (35.732.030) - STABILIZER, MECHANICAL, CONTROLS, CHECK VALVE, LINES (35) - HYDRAULIC SYSTEMS

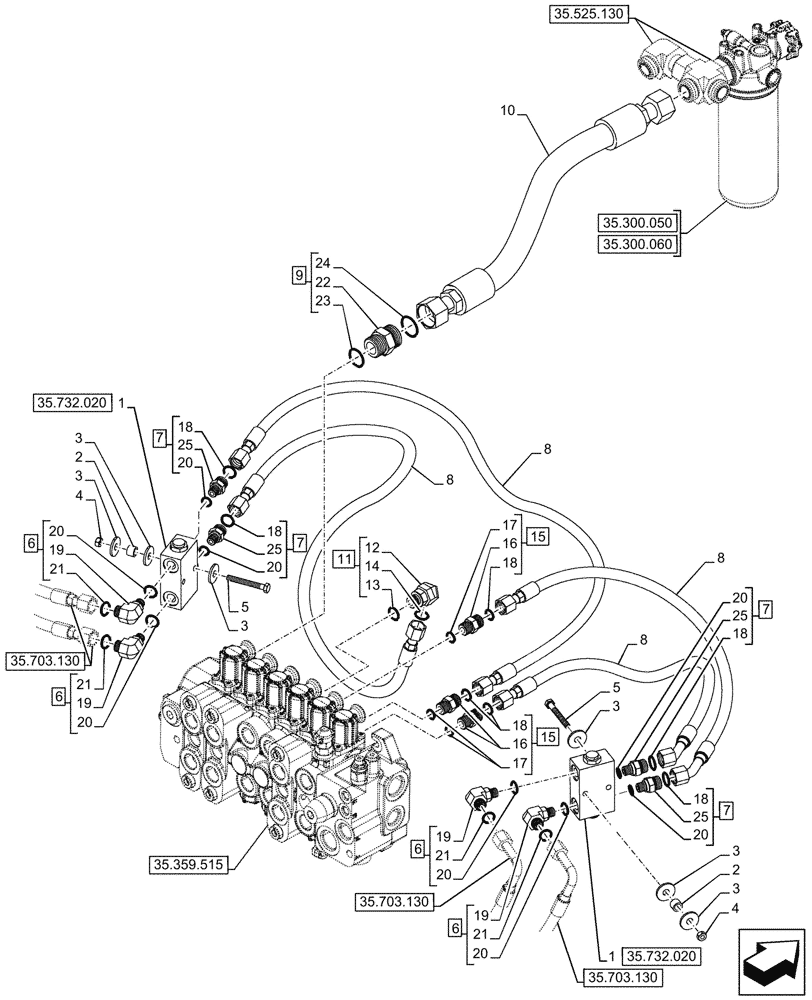

Схема запчастей Case 590SN - (35.732.030) - STABILIZER, MECHANICAL, CONTROLS, CHECK VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.732.020
20
21
3
3
18
7
3
15
21
18
20
6
25
6
3
20
13
8
15
17
20
8
6
3
22
18
19
9
21
24
7
3
21
23
2
16
1
18
19
20
16
4
17
14
25
7
7
19
18
10
6
5
18
8
2
1
20
11
4
25
20
12
8
5
25
20
19
35.300.060
35.703.130
35.703.130
35.703.130
35.300.050
35.525.130
35.359.515
35.732.020

Артикул

Название

Примечание

Количество

1

85802820

CHECK VALVE

ASSY, Stabilizer, Load

2шт.

2

87437840

SPACER,11.5mm L

11.5mm L

2шт.

3

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

6шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

5

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

6

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 19, 20 (Qty 4), 21

4шт.

7

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

4шт.

8

84256813

HYD TUBE,10mm ID x 719mm L

10mm ID x 719mm L, Backhoe Valve to Stabilizer Check Valve

4шт.

9

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 22 - 24

1шт.

10

48040045

HYDRAULIC HOSE,25mm ID x 790mm L

Backhoe Valve To Hydraulic Filter

1шт.

11

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 11

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 16, 17, 18 (Qty 3)

3шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

3шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

19

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

4шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

22

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

23

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

4шт.

Выбрано товаров: 25
