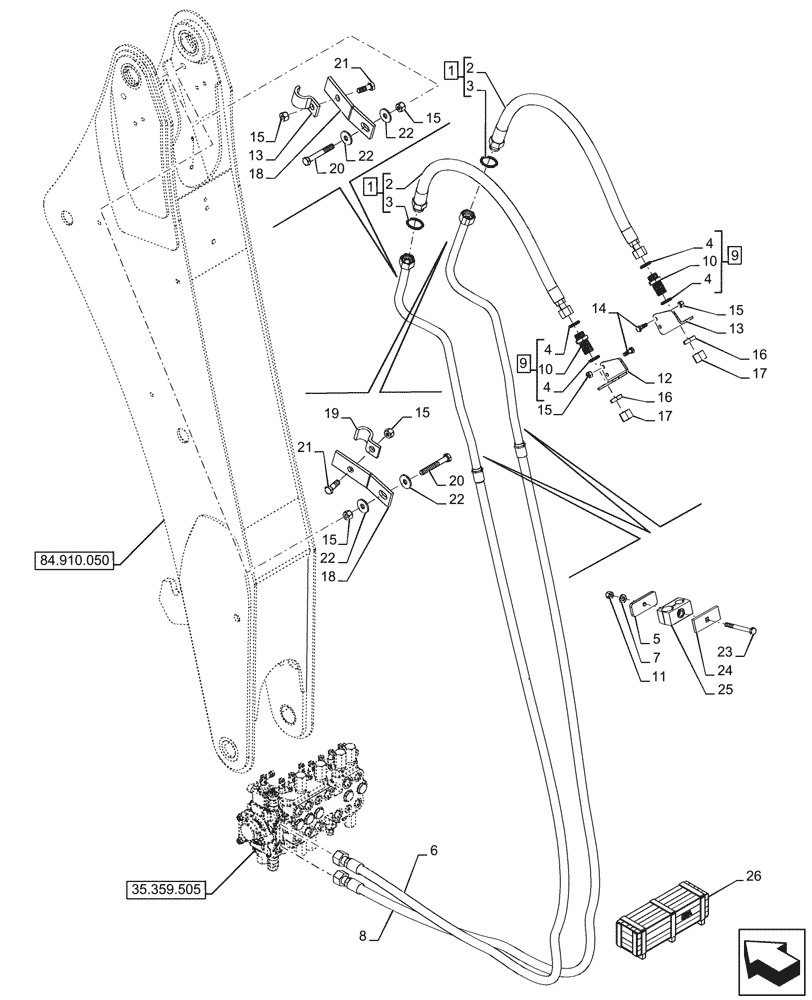

Запчасти Case 590SN (35.726.090) - AUXILIARY HYDRAULIC, W/ STANDARD DIPPER (35) - HYDRAULIC SYSTEMS

1

84321969

HOSE,19mm ID x 969mm L

ASSY, Standard Auxiliary, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

2шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

84342644

PLATE

2шт.

6

84280514

HYD TUBE,19mm ID x 2800mm L

ASSY, Standard Valve to Auxiliary Port A

1шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

8

84280515

HYD TUBE,19mm ID x 2851mm L

ASSY, Standard Valve to Auxiliary Port B

1шт.

9

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 4, 10

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.

11

412250

NUT,M8 x 1.25, Cl 8

2шт.

12

84305006

BRACKET

LH

1шт.

13

84305054

BRACKET

RH

1шт.

14

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

15

412141

NUT,M10 x 1.5, Cl 8

8шт.

16

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

17

201-907

CAP,1-3/16" - 12 ORFS

2шт.

18

84266298

PLATE

2шт.

19

242459A1

SHIN

2шт.

20

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

22

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

23

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

24

84283495

SECURING STRAP

2шт.

25

87000146

CLAMP

2шт.

26

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 25

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 25

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 25

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 25

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
