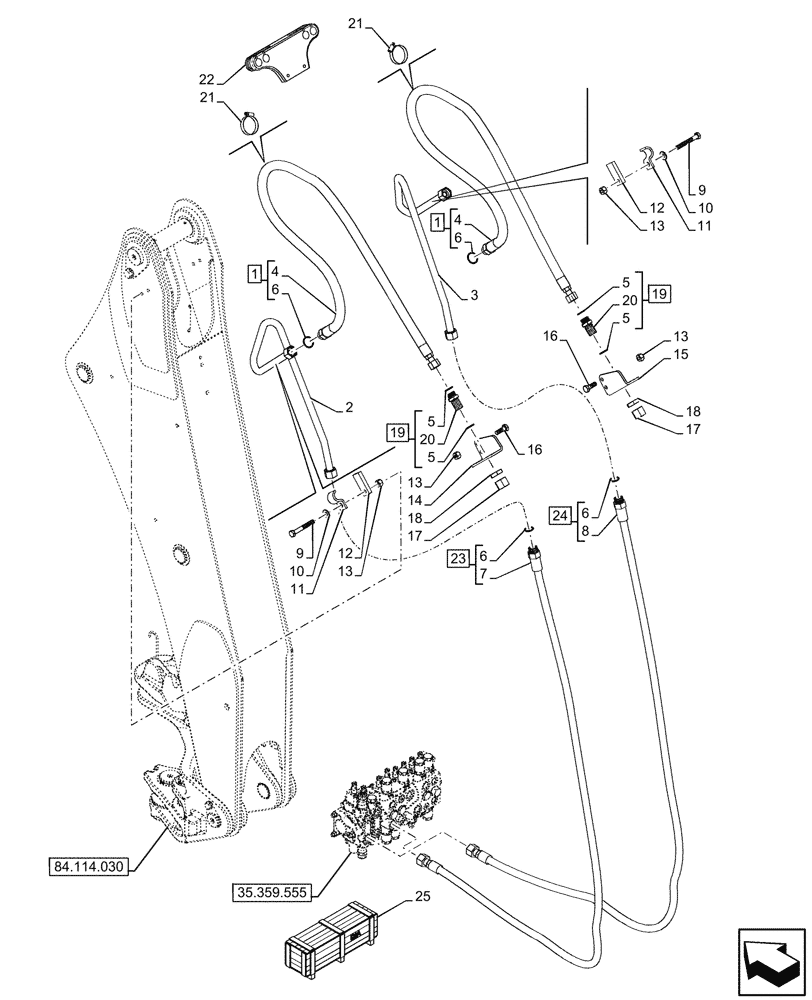

Запчасти Case 590SN (35.726.040) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, W/ COLD WEATHER (35) - HYDRAULIC SYSTEMS

1

47810606

HYDRAULIC HOSE,19.05mm ID x 2030mm L

ASSY, Valve to Boom, Incl 4, 6 (Qty 2)

2шт.

2

84343059

TUBE

Auxiliary LH

1шт.

3

84343077

TUBE

Auxiliary RH

1шт.

4

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

2шт.

5

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

7

NSS

NOT SOLD SEPARAT

Hose, Port A, Incl in 23

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Port B, Incl in 24

1шт.

9

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

11

242459A1

SHIN

2шт.

12

84299978

PLATE

2шт.

13

412141

NUT,M10 x 1.5, Cl 8

6шт.

14

84305006

BRACKET

LH

1шт.

15

84305054

BRACKET

RH

1шт.

16

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

17

201-907

CAP,1-3/16" - 12 ORFS

2шт.

18

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

19

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 5 (Qty 2), 20

2шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

2шт.

21

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

22

84359766

SUPPORT

Hose Dual Auxiliary Hydraulic

1шт.

23

47810616

HYDRAULIC HOSE,19.05mm ID x 2800mm L

ASSY, Valve to Boom Port A, Incl 6 (Qty 1), 7

1шт.

24

47810600

HYDRAULIC HOSE,19.05mm ID x 2795mm L

ASSY, Valve to Boom Port B, Incl 6 (Qty 1), 8

1шт.

25

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 2, 3, 5, 9 - 22

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
