Запчасти Case 590SN (35.726.010) - VAR - 423083 - BACKHOE CONTROL VALVE, LINK, ROD (35) - HYDRAULIC SYSTEMS

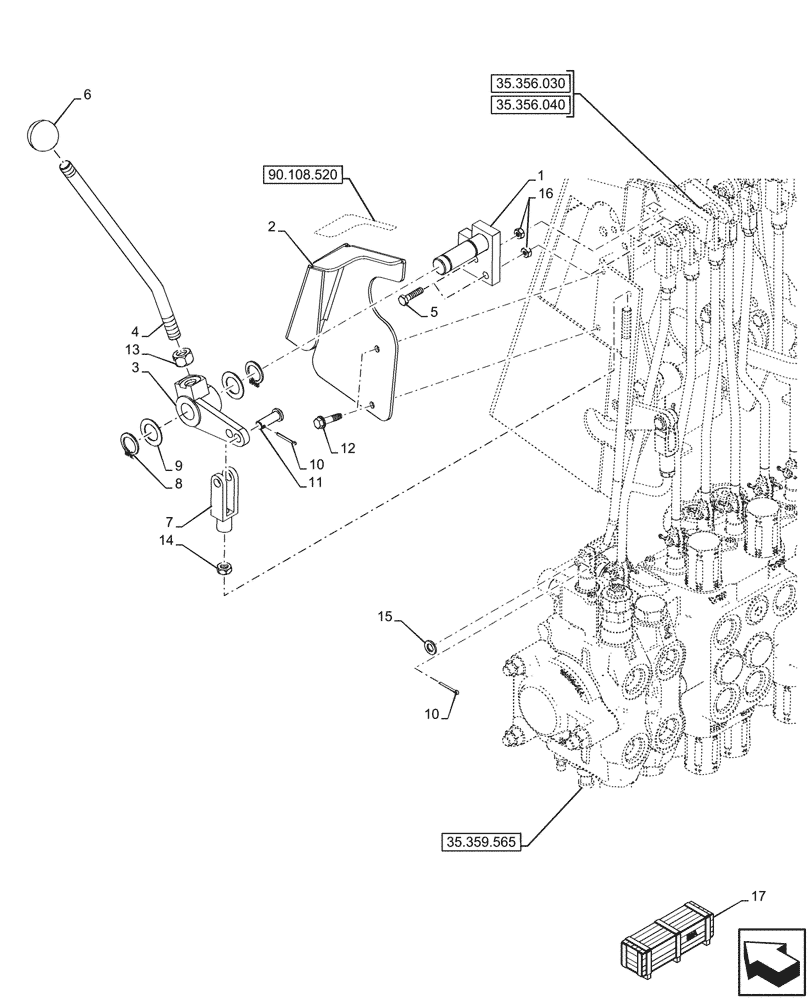

Схема запчастей Case 590SN - (35.726.010) - VAR - 423083 - BACKHOE CONTROL VALVE, LINK, ROD (35) - HYDRAULIC SYSTEMS
35.356.030
6
14
7
8
5
16
13
15
2
3
17
9
4
1
11
12
10
90.108.520
35.359.565
10
35.356.040

Артикул

Название

Примечание

Количество

1

87425117

PIVOT

Auxiliary Hydraulic Lever

1шт.

2

87425122

BRACKET

1шт.

3

182006A1

LEVER

Extendable Dipper

1шт.

4

221477A1

THREADED ROD,1/2"-20 UNF x 250mm L

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

6

D59912

KNOB

Control Handle

1шт.

7

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

8

103-1475

SNAP RING,#75, Ext

2шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

10

432-612

COTTER PIN,3/32" x 3/4"

3шт.

11

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

12

281-14716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

2шт.

13

425-118

NUT,1/2"-20, G5

1шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

17

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47945938

CONSTRUCTION DIA

Combo Auxiliary, Incl 1 - 16

1шт.

Valid for All Models, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47946549

CONSTRUCTION DIA

Uni to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for All Models, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 16

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 40
