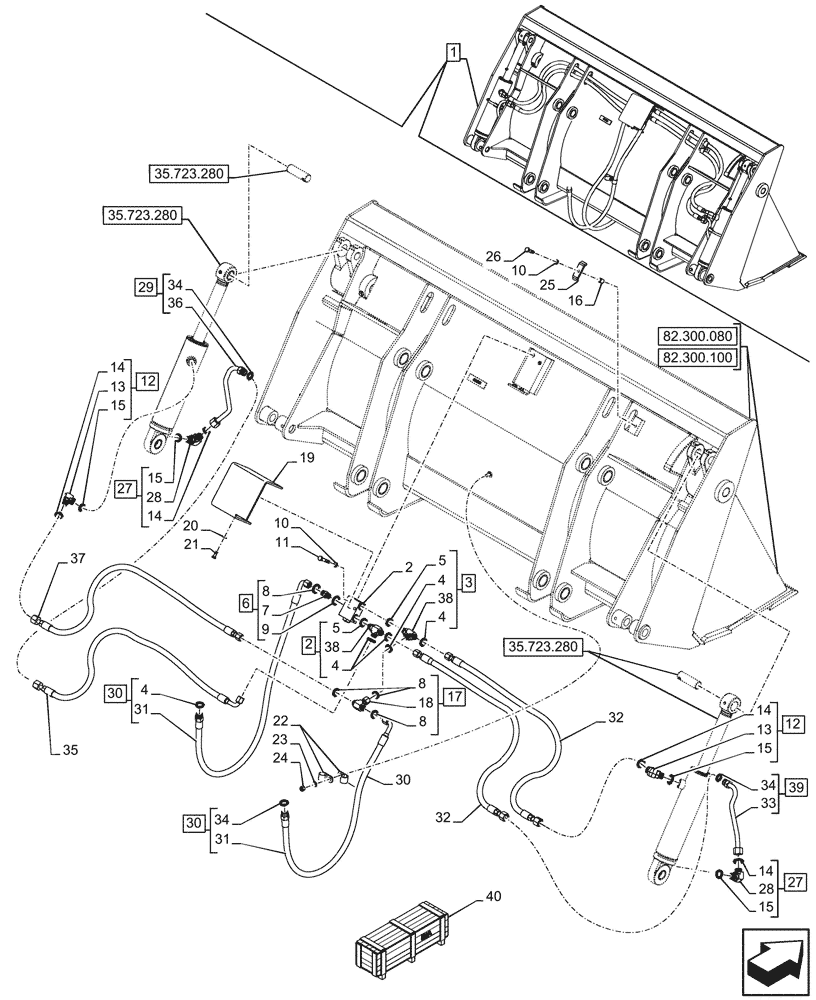

Запчасти Case 590SN (35.723.270) - VAR - 742433 - LOADER BUCKET, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

47613232

4 IN 1 BUCKET,93" L

ASSY, 1.2 YD - 93In / 2362mm, Incl 2 - 39

1шт.

See also 4 In 1 Bucket Components in Figures 35.723.280, 82.300.090, 90.108.026

1шт.

2

47565552

PILOT VALVE

Pilot Operator Check

1шт.

3

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 4, 5, 38

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 7, 8 (Qty 1), 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

12

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 13, 14 (Qty 2), 15 (Qty 2)

2шт.

13

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 12

2шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

16

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

17

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

ASSY, Incl 8 (Qty 2), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Tee, Incl in 17

1шт.

19

388848A1

GUARD

1шт.

20

892-11008

LOCK WASHER,8mm ID

2шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

22

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

D143846

CLAMP

2шт.

26

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

27

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 14 (Qty 2), 15 (Qty 2), 28

2шт.

28

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 27

2шт.

29

84219830

HYD TUBE

ASSY, Bucket, LH Cylinder, Incl 34 (Qty 1), 36

1шт.

30

84272032

HOSE ASSY.,12.5mm ID x 1290mm L

Pilot Operator Check Valve to Auxiliary Hydraulic, Incl 31, 34 (Qty 2)

2шт.

31

NSS

NOT SOLD SEPARAT

Hose, Incl in 30

2шт.

32

84231565

HOSE ASSY.,12.5mm ID x 1194mm L, SAE 100R16 Type S

Pilot Operator Check Valve to RH Cylinder Line

2шт.

33

NSS

NOT SOLD SEPARAT

Tube, Incl in 39

1шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

35

84231568

HOSE ASSY.,12.5mm ID x 1296mm L, SAE 100R16 Type S

Pilot Operator Check Valve to LH Cylinder Line

1шт.

36

NSS

NOT SOLD SEPARAT

Tube, Incl in 29

1шт.

37

84231569

HOSE ASSY.,12.5mm ID x 1306mm L, SAE100R16 Type S

Pilot Operator Check Valve to LH Cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

2шт.

39

84219829

HYD TUBE

ASSY, Bucket, RH Cylinder, Incl 33, 34 (Qty 1)

1шт.

40

47540572

CONSTRUCTION DIA

Bucket 93Inch 4 in 1, Incl 1 - 39

1шт.

Valid for 590SN (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

40

47553020

CONSTRUCTION DIA

Bucket 93Inch 4 in 1, Incl 1 - 39

1шт.

Valid for 580SN WT (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

40

84571018

BUCKET

Bucket 93 Inch 4 in 1, Incl 1 - 39

1шт.

Valid for 580SN WT (Livery), 590SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
