Запчасти Case 590SN (35.703.070) - STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

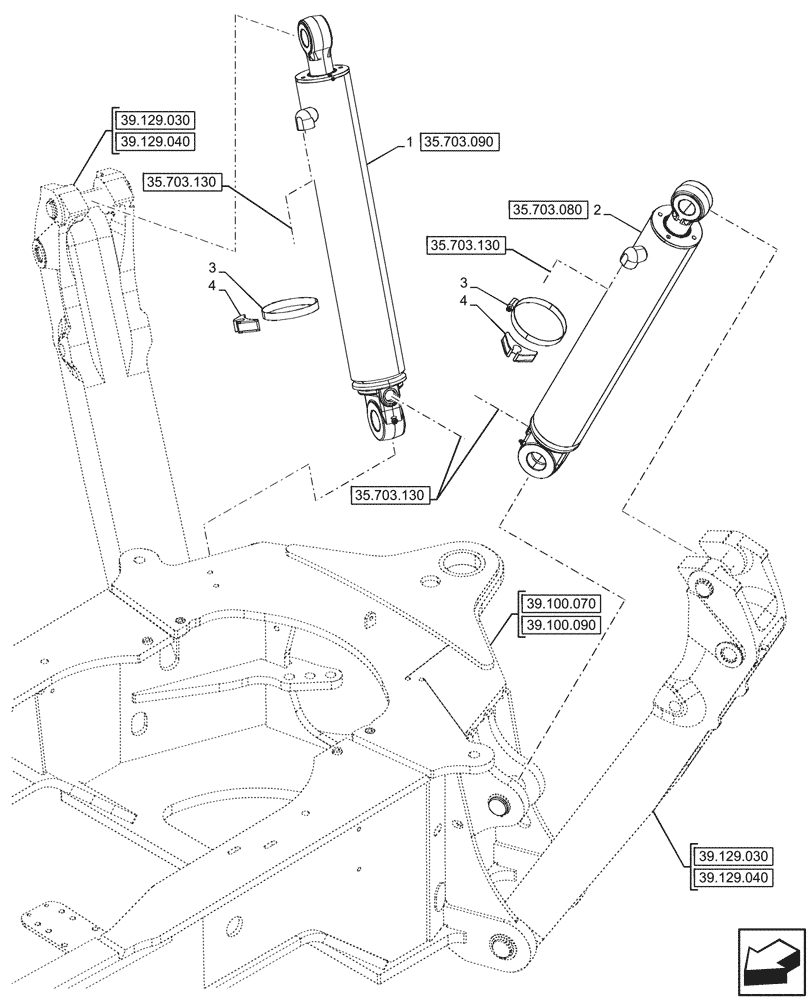

Схема запчастей Case 590SN - (35.703.070) - STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS
35.703.080
1
3
3
4
2
4
39.129.030
39.129.030
35.703.130
35.703.130
35.703.130
39.100.070
39.100.090
39.129.040
39.129.040
35.703.090

Артикул

Название

Примечание

Количество

1

84421609

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 133.4mm Bore, 518.1mm Stroke

ASSY, Grey, Stabilizer RH

1шт.

2

84421607

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 133.4mm Bore, 518.1mm Stroke

ASSY, Grey, Stabilizer LH

1шт.

3

214-14100

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

2шт.

4

D142787

SPACER

2шт.

Выбрано товаров: 4
