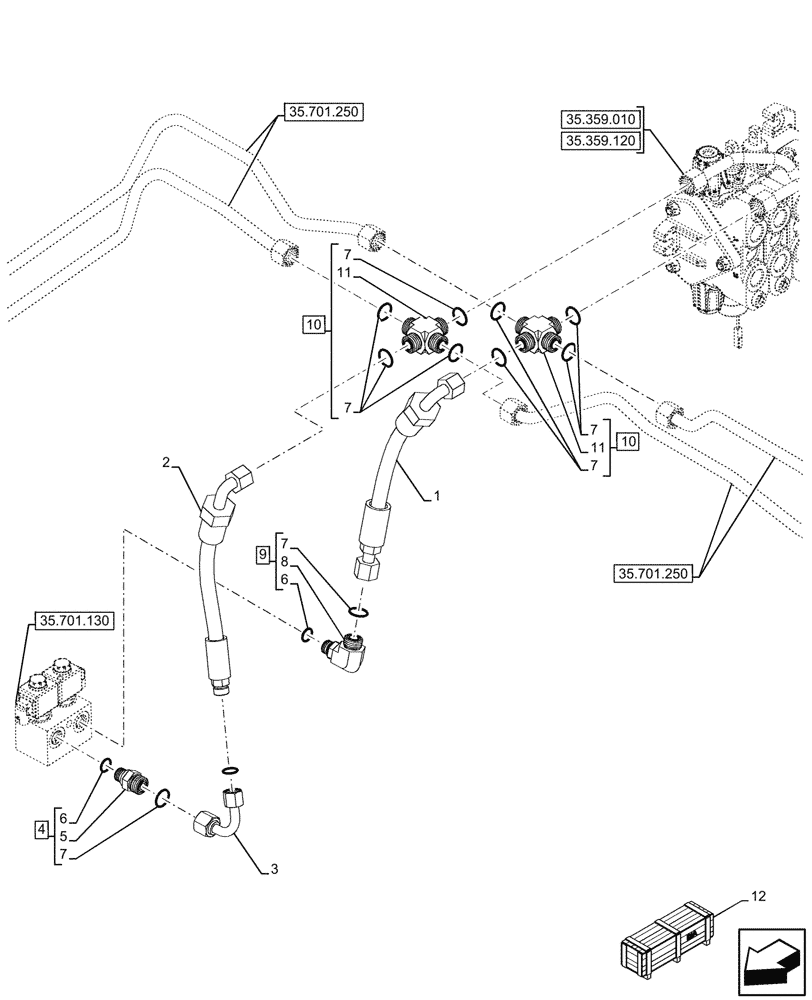

Запчасти Case 590SN (35.701.170) - VAR - 423098 - RIDE CONTROL, HYDRAULIC LINE, 2WD (35) - HYDRAULIC SYSTEMS

1

47473494

HYDRAULIC HOSE,12.5mm ID x 341.8mm L, SAE 100R16 Type S

Ride Control P2 Port

1шт.

2

47565328

HYDRAULIC HOSE,12.5mm ID x 337mm L

Ride Control P1 Port

1шт.

3

47473497

HYD TUBE

Ride Control P1 Port

1шт.

4

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 5, 6 (Qty 1), 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

9

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 6 (Qty 1), 7 (Qty 1), 8

1шт.

10

87338053

4 WAY CONNECTION

ASSY, Incl 7 (Qty 8), 11

2шт.

11

NSS

NOT SOLD SEPARAT

Cross, Incl in 10

2шт.

12

47880215

CONSTRUCTION DIA

Ride Control, 2WD, Incl 1 - 10

1шт.

Valid for 580N (Livery), 580SN (Livery), 590SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
