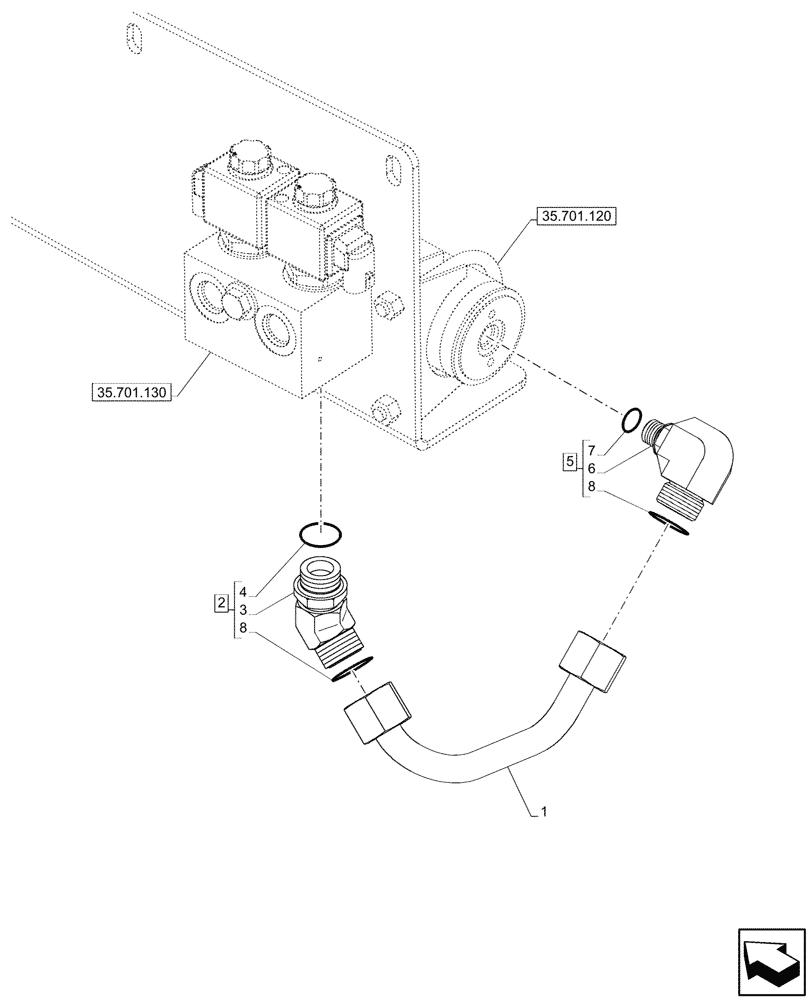

Запчасти Case 590SN (35.701.140) - VAR - 423090, 423098 - RIDE CONTROL, ACCUMULATOR, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

48046062

HYD TUBE

Ride Control Valve to Accumulator

1шт.

2

87530403

ELBOW

ASSY, Incl 3, 4, 8 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 2

1шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 6, 7, 8 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
