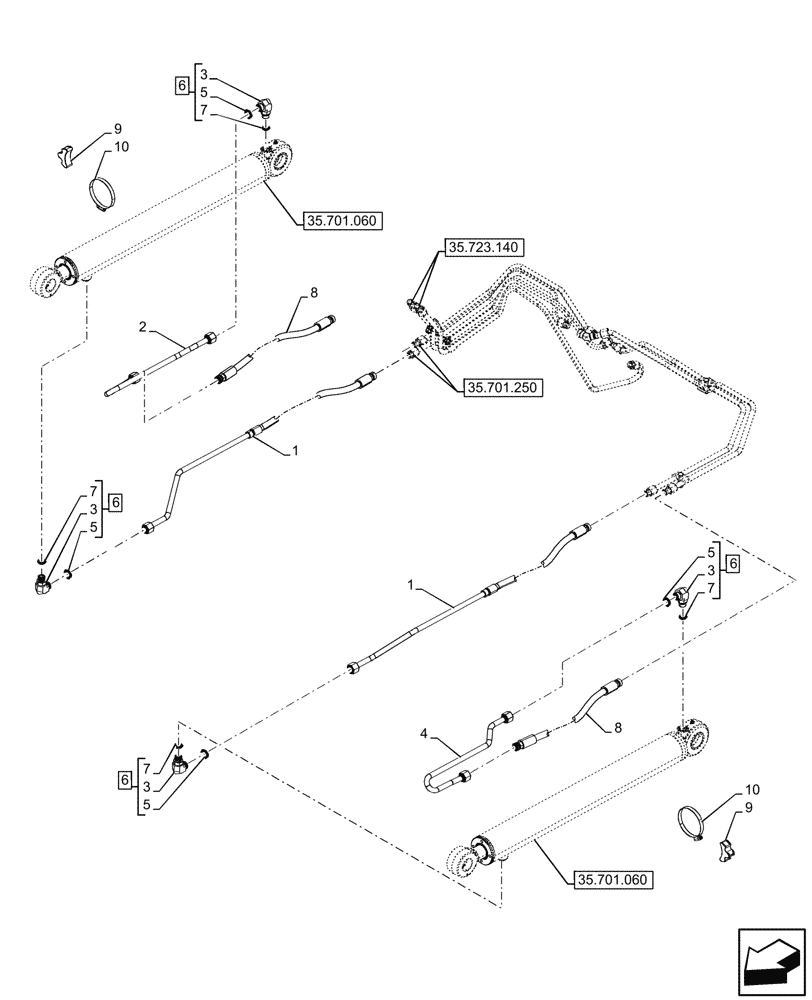

Запчасти Case 590SN (35.701.080) - LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

84296008

HYD TUBE

Lift Port A

2шт.

2

84295697

HYD TUBE

RH, Loader Lift Port B

1шт.

3

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 6

4шт.

4

84295087

HYD TUBE

LH, Loader Lift Port B

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

6

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 3, 5, 7

4шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

8

84351615

HOSE ASSY.,12.5mm ID x 526mm L

Loader Lift Head End

2шт.

9

84296627

SECURING STRAP

2шт.

10

214-1476

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

2шт.
