Артикул
Название
Примечание
Количество

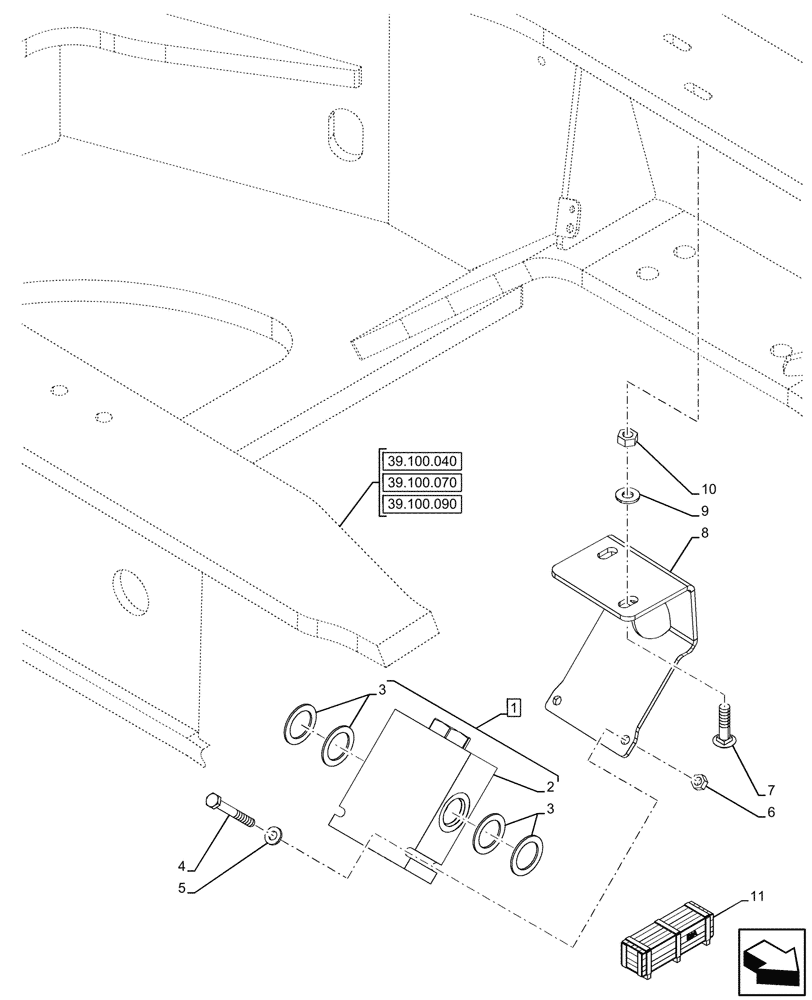

1
84422084
CHECK VALVE
ASSY, Pilot to Open, Incl 2, 3
1шт.
2
84422094
CHECK VALVE
1шт.
3
84422097
SERVICE KIT
Pilot Controls, Check Valve
1шт.
4
120062
BOLT,Hex, M8 x 70mm, Cl 8.8
2шт.
5
87655042
SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk
2шт.
6
9706690
NUT,M8 x 1.25, Cl 8
2шт.
7
374892
CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8
2шт.
8
84259186
BRACKET
1шт.
9
87655046
SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk
2шт.
10
100016
NUT,M10 x 1.5, Cl 8
2шт.
11
47501542
CONSTRUCTION DIA
No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1 - 10
1шт.
Valid for 590SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
11
47501543
CONSTRUCTION DIA
No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 10
1шт.
Valid for 580SN, 580SN WT Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
11
47501544
CONSTRUCTION DIA
No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 10
1шт.
Valid for 590SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
11
47661908
CONSTRUCTION DIA
Uni-Auxiliary to Combo, Incl 1 - 10
1шт.
Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Standard Transmission and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
11
47662021
CONSTRUCTION DIA
No Auxiliary to Combo, Incl 1 - 10
1шт.
Valid for 580SN (Livery), 580SN WT (Livery) Models Only, W/ Extendable Dipper and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
11
47662033
CONSTRUCTION DIA
Uni-Auxiliary to Combo Auxiliary, Incl 1 - 10
1шт.
Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Extendable Dipper and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 28
