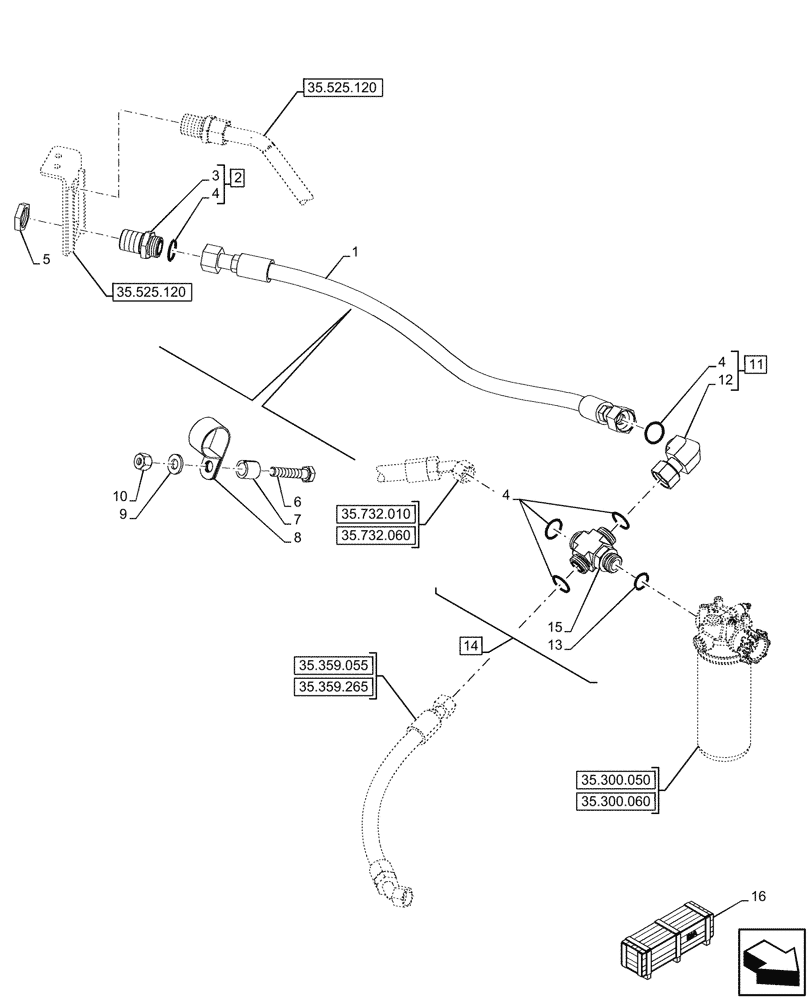

Запчасти Case 590SN (35.525.130) - VAR - 747662 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

48043962

HYDRAULIC HOSE,19mm ID x 953mm L

Uni-Auxiliary Return

1шт.

2

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

ASSY, Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Union, Incl in 2

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

5шт.

5

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

6

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

7

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

8

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

11

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

ASSY, Incl 4 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

ASSY, Incl 4 (Qty 3), 13, 15

1шт.

15

NSS

NOT SOLD SEPARAT

Cross, Incl in 14

1шт.

16

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

84544872

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 15

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 15

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
