Запчасти Case 590SN (35.525.010) - VAR - 423083, 747661 - AUXILIARY HYDRAULIC, CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

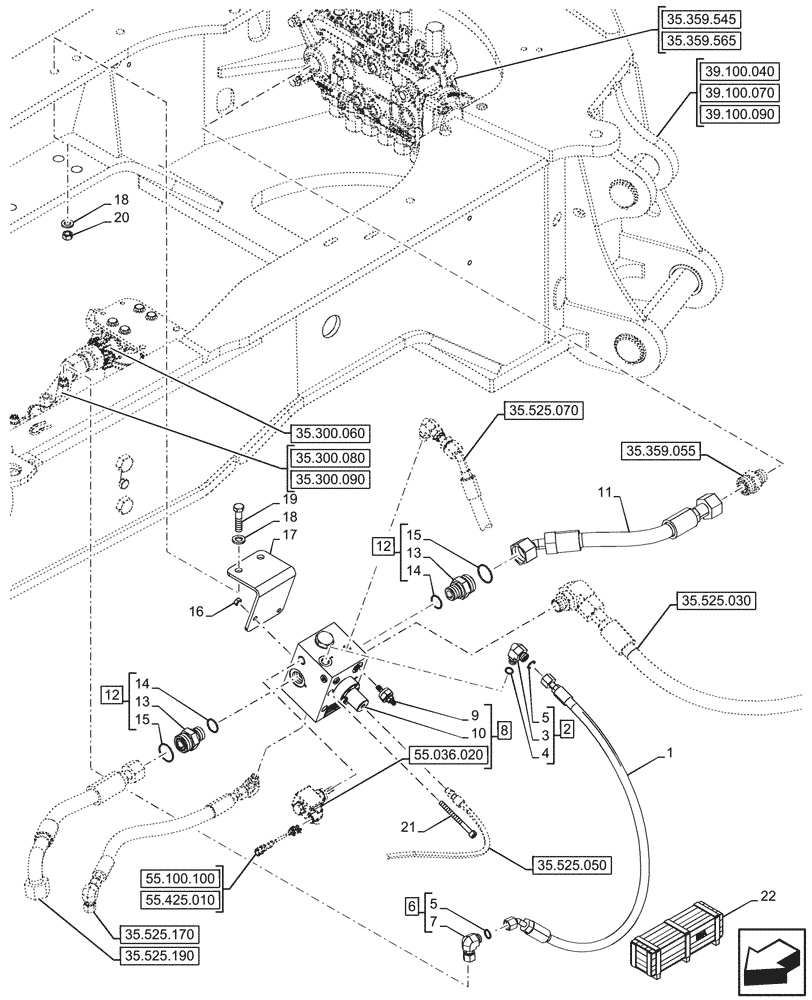

Схема запчастей Case 590SN - (35.525.010) - VAR - 423083, 747661 - AUXILIARY HYDRAULIC, CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.359.055
6
9
21
1
15
22
20
12
2
12
16
4
13
7
8
14
5
3
18
15
5
19
17
11
14
13
10
18
35.300.090
35.300.060
35.359.565
35.525.190
35.525.030
55.036.020
35.525.050
35.359.545
35.525.070
55.100.100
35.300.080
35.525.170
55.425.010
39.100.040
39.100.070
39.100.090

Артикул

Название

Примечание

Количество

1

84514723

HOSE ASSY.,10mm ID x 1035mm L

Aux Valve to Filter

1шт.

2

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 3, 4, 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

1шт.

8

84247109

VALVE

ASSY, Open Center Uni-Aux, Incl 9, 10

1шт.

See also Valve Components in Figure 55.036.020

1шт.

9

9970178

VALVE PRESSURE RELIE

1шт.

10

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 8

1шт.

11

84283270

HOSE ASSY.,19mm ID x 415mm L

Auxiliary Valve to Backhoe Valve

1шт.

12

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 13 - 15

2шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

2шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

16

43362

NUT,M8 x 1.25, Cl 10

2шт.

17

84257782

BRACKET

Backhoe Auxiliary Valve Mounting

1шт.

18

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

19

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

20

337475

NUT,M12, Cl 10

2шт.

21

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

22

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 21

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 21

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 21

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 21

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 46
