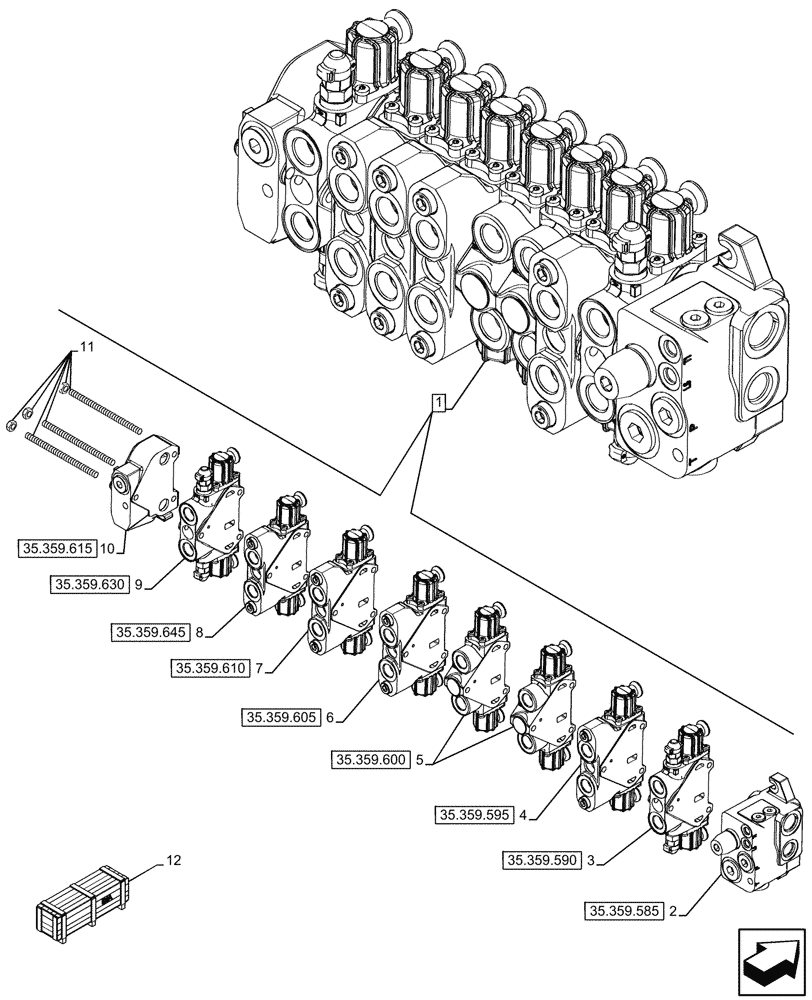

Запчасти Case 590SN (35.359.655) - 8-SPOOL, BACKHOE CONTROL VALVE, EXTENDABLE DIPPER, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84551844

CONTROL VALVE

ASSY, Backhoe 8 Spool Pilot Control, Incl 2 - 11

1шт.

2

84278712

HYD VALVE SECTION

ASSY, Inlet

1шт.

3

84586031

HYD VALVE SECTION

ASSY, Swing

1шт.

4

84278714

HYD VALVE SECTION

ASSY, Boom

1шт.

4

84278714R

REMAN-HYD VALVE

Reman ASSY, Boom

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

ASSY, Stabilizer

2шт.

6

84278710

HYD VALVE SECTION

ASSY, Dipper

1шт.

7

84278702

HYD VALVE SECTION

ASSY, Backhoe Bucket

1шт.

8

84278692

HYD VALVE SECTION

ASSY, Extendable Dipper

1шт.

9

84278691

HYD VALVE SECTION

ASSY, BI-DIR Pilot Control

1шт.

10

85811915

HYD VALVE SECTION

ASSY, Outlet

1шт.

11

87447477

SET OF PARTS

1шт.

12

47670543

SERVICE KIT

Dual Auxiliary, Service, Incl 9, 11

1шт.

Valid for All Models, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
