Запчасти Case 590SN (35.359.625) - 7-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, W/ DOUBLE AUXILIARY HYDRAULIC, COMPONENTS (35) - HYDRAULIC SYSTEMS

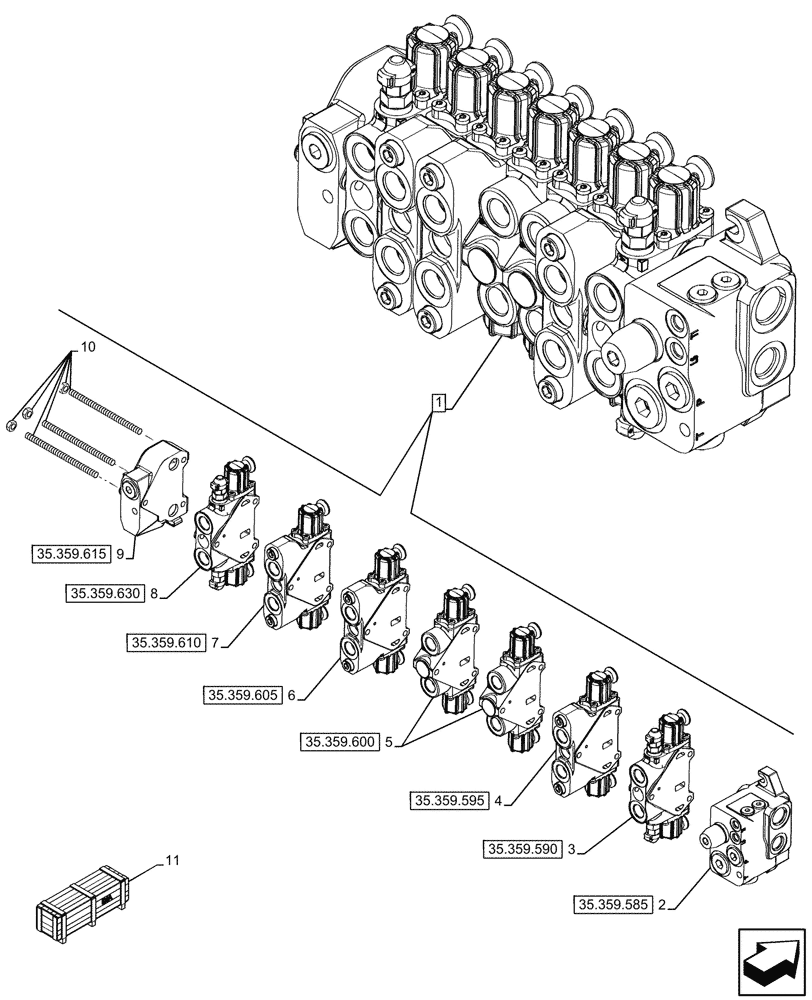

Схема запчастей Case 590SN - (35.359.625) - 7-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, W/ PILOT CONTROLS, W/ DOUBLE AUXILIARY HYDRAULIC, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.595
2
5
1
11
4
7
10
6
3
9
8
35.359.630
35.359.590
35.359.615
35.359.585
35.359.600
35.359.610
35.359.605

Артикул

Название

Примечание

Количество

1

84551842

CONTROL VALVE

ASSY, Backhoe 7 Spool Pilot Control, Incl 2 - 10

1шт.

2

84278712

HYD VALVE SECTION

ASSY, Inlet

1шт.

3

84586031

HYD VALVE SECTION

ASSY, Swing

1шт.

4

84278714

HYD VALVE SECTION

ASSY, Boom

1шт.

4

84278714R

REMAN-HYD VALVE

Reman ASSY, Boom

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

ASSY, Stabilizer

2шт.

6

84278710

HYD VALVE SECTION

ASSY, Dipper

1шт.

7

84278702

HYD VALVE SECTION

ASSY, Backhoe Bucket

1шт.

8

84278691

HYD VALVE SECTION

ASSY, BI-DIR Pilot Control

1шт.

9

85811915

HYD VALVE SECTION

ASSY, Outlet

1шт.

10

87751102

BOLT

1шт.

11

47670289

SERVICE KIT

Dual Auxiliary, Incl 8, 10

1шт.

Valid for All Models, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
