Запчасти Case 590SN (35.359.610) - 6-SPOOL, 7-SPOOL, 8-SPOOL, BACKHOE CONTROL VALVE, BUCKET SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

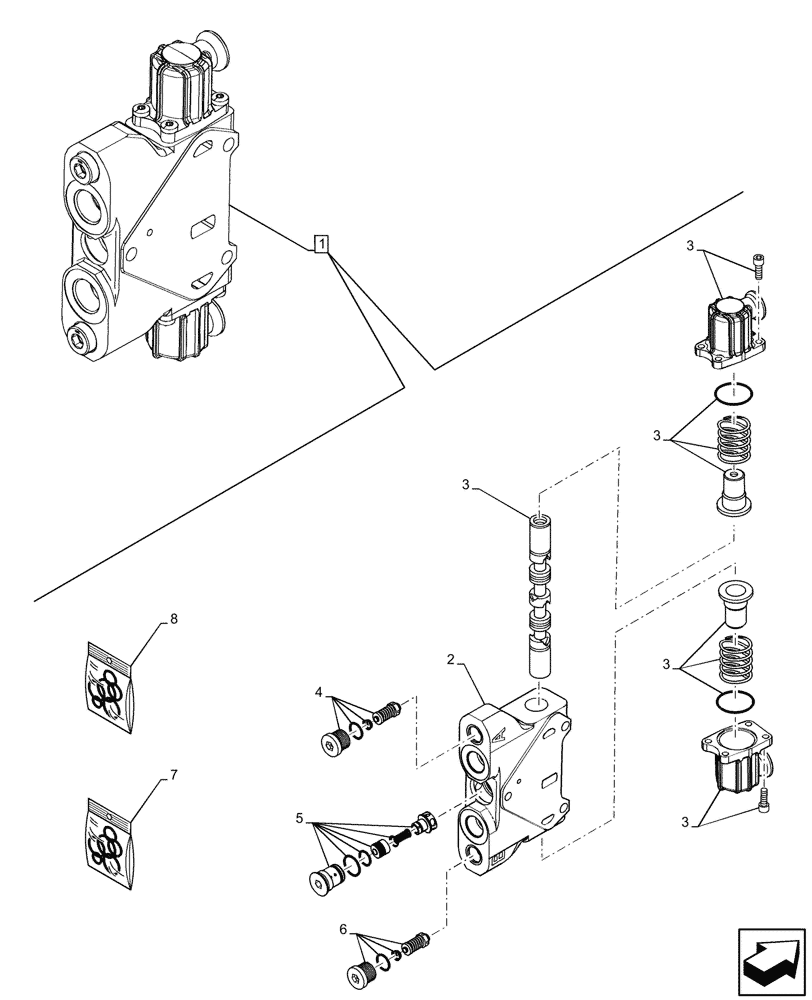

Схема запчастей Case 590SN - (35.359.610) - 6-SPOOL, 7-SPOOL, 8-SPOOL, BACKHOE CONTROL VALVE, BUCKET SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
3
6
4
3
3
8
1
2
5
7
3

Артикул

Название

Примечание

Количество

1

84278702

HYD VALVE SECTION

ASSY, Backhoe Bucket, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

84295049

VALVE PRESSURE RELIE,283 Bar

1шт.

5

47422242

COMPENSATOR

1шт.

6

84295050

VALVE PRESSURE RELIE,296 Bar

1шт.

7

87617657

O-RING KIT

Control Valve Section

1шт.

8

85825473

SEAL KIT

Backhoe Control Valve, Stabilizer, Boom & Dipper Sections

1шт.

Выбрано товаров: 8
