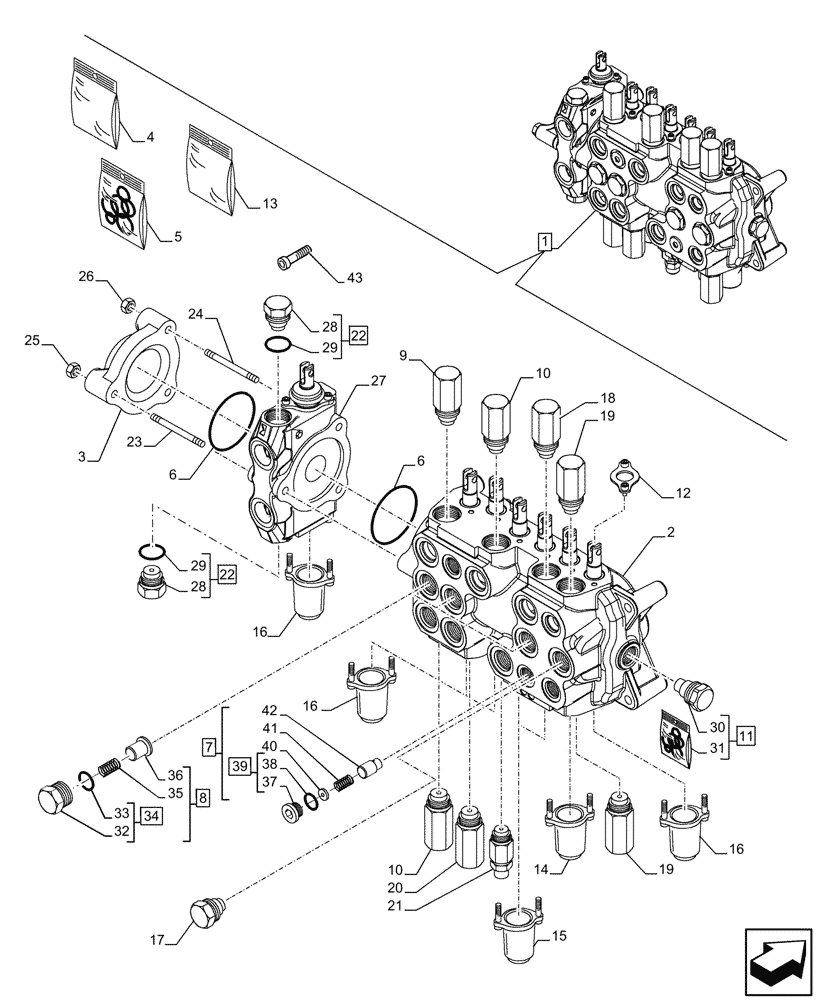

Запчасти Case 590SN (35.359.540) - 7-SPOOL, BACKHOE CONTROL VALVE, EXTANDABLE DIPPER, FOOT SWING, W/O 2 LEVER CONTROLS, W/O DOUBLE AUXILIARY HYDRAULIC, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47578534

VALVE

ASSY, Incl 2 - 43

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Outlet

1шт.

4

84276557

SERVICE KIT

ASSY, Bolt on Extendable Dipper, Mechanical Control

1шт.

5

47537934

SEAL KIT

Mechanical Backhoe Valve Seal

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

7

87428486

VALVE, CHECK

ASSY, Incl 37 - 42

1шт.

8

87426238

VALVE, CHECK

ASSY, Incl 32 - 36

3шт.

9

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

10

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

11

81868381

CHECK VALVE,1-1/16" - 12

ASSY, Anti Void, Incl 30, 31

1шт.

12

84315193

SEAL

6шт.

13

84296861

SERVICE KIT

Foot Swing B Port End Group

1шт.

14

84296862

KIT

Mech Boom B Port End Group

1шт.

15

84296826

SERVICE KIT

Mechanical Stabilizer End Group B Port

2шт.

16

84296859

KIT

Mechanical Backhoe Valve B Port End G

3шт.

17

47538073

CHECK VALVE

1шт.

18

47537935

VALVE PRESSURE RELIE,221 Bar

1шт.

19

47520547

VALVE PRESSURE RELIE,205 Bar

Swing 207 Bar

2шт.

20

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

21

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

22

83981068

STOP PLUG,Hex, 1/16 - 12 UN

ASSY, Incl 28, 29

2шт.

23

47538075

TIE-ROD

1шт.

24

47538074

TIE-ROD

2шт.

25

47520611

NUT

1шт.

26

47520609

NUT

2шт.

27

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 22

2шт.

29

87308628

PLASTIC RING

Special

2шт.

30

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 11

1шт.

31

87455580

O-RING KIT

Backhoe Control Valve, Anti-Void Check Valve

1шт.

32

NSS

NOT SOLD SEPARAT

Plug, Incl in 34

3шт.

33

87455975

O-RING

3шт.

34

87455581

PLUG,Hex, 1/16" - 12 ORB

ASSY, Incl 32, 33

3шт.

35

87455582

SPRING

3шт.

36

87455583

VALVE POPPET

Load Check

3шт.

37

NSS

NOT SOLD SEPARAT

Plug, Incl in 39

1шт.

38

87455974

O-RING,0.097" Thk x 0.755" ID

1шт.

39

87455593

PLUG,7/8" - 14 ORB

ASSY, Incl 37, 38

1шт.

40

87455594

WASHER

Plastic

1шт.

41

87455595

SPRING

1шт.

42

87455596

PISTON

Poppet, Low Leak

1шт.

43

87428491

SCREW,Hex

2шт.
